The three-phase induction motor is the most widely used industrial electric motor due to its simple construction, reliability, and low maintenance requirements. Operating on electromagnetic induction principles, it consists of a stationary stator that creates a rotating magnetic field and a rotor that turns slightly slower than synchronous speed (hence "asynchronous"). These robust motors feature a self-starting design with no brushes or commutators, offering high efficiency (up to 96% in premium models) and long service life. Available in various efficiency classes (IE1 to IE4) and power ratings from fractional horsepower to megawatts, they're ideal for pumps, fans, compressors, and conveyor systems. Modern versions support variable speed operation when paired with frequency converters, while maintaining excellent torque characteristics across the speed range.
Three-Phase Motor is an electric motor driven by three-phase alternating current. It generates a rotating magnetic field through three-phase power supply (with a phase difference of 120°), which drives the rotor to rotate.

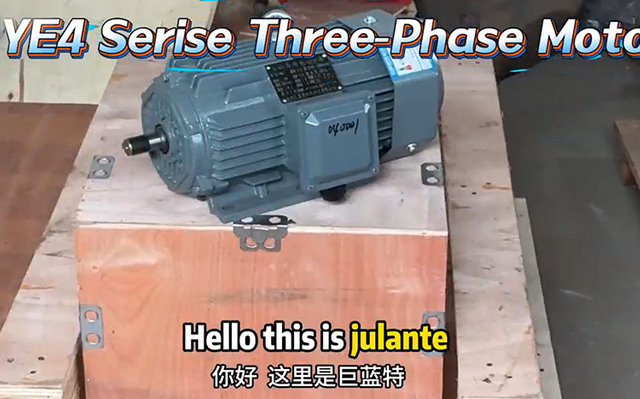

YE4 series three-phase motor

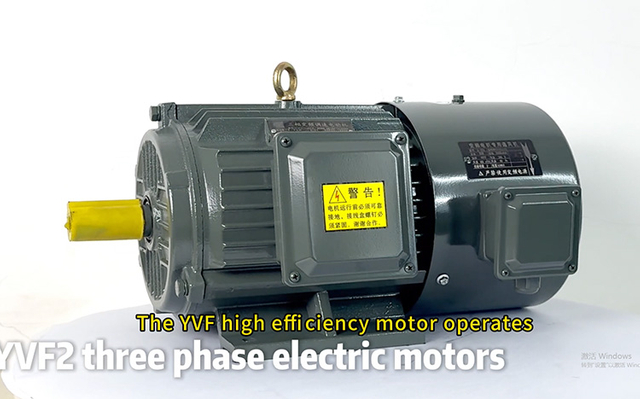

YVF high efficiency three phase electric motor
new product release

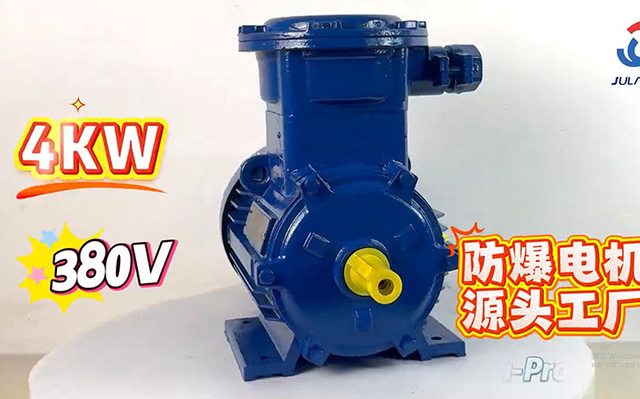

explosion-proof electric motor
ECONOMY IS AFFORDABLE
FIRST-RATE SERVICE
Advantages of Three-Phase Motors
Three-phase motors are among the most widely used electric motors in industrial applications. Compared to single-phase motors or other motor types, they offer the following significant advantages
High Efficiency & Energy Saving
Three-phase motors operate on a symmetrical three-phase AC power supply, achieving a higher power factor (typically ≥0.85) and superior energy conversion efficiency (90%~96% for IE3/IE4 class) compared to single-phase motors (usually 80%~85%).
Low-loss designs (e.g., copper windings, optimized magnetic circuits) minimize heat generation and energy waste, reducing long-term electricity costs.
Smooth Operation
The 120° phase difference in three-phase current creates a uniform rotating magnetic field, resulting in minimal torque ripple, low vibration, and reduced noise—making them suitable for precision equipment (e.g., machine tools, pumps).
Single-phase motors, due to their pulsating magnetic field, often exhibit unstable operation and require additional measures (e.g., capacitor splitting) to improve performance.
Wide Power Range
Three-phase motors cover a broad power range (0.12 kW to 1000 kW+), making them suitable for applications ranging from small appliances to large industrial machinery (e.g., fans, cranes).
Single-phase motors are typically limited to low-power applications (<5 kW), with costs and efficiency dropping sharply at higher power levels.
Superior Starting Performance
Direct-On-Line (DOL) Starting: Three-phase motors can start directly without capacitors or auxiliary devices, simplifying their construction.
High Starting Torque: Ideal for heavy-load applications (e.g., compressors, conveyors), whereas single-phase motors often require additional starting windings.
Simple Structure & Low Maintenance
Brushless design and absence of commutators reduce wear compared to DC motors, extending lifespan.
Robust stator and rotor construction ensures durability in harsh environments (high temperatures, dust).
Flexible Control
Variable Frequency Drives (VFDs) enable stepless speed control, adapting to varying load demands (e.g., energy-saving pump applications).
Supports star-delta starting, soft starters, and other methods to reduce inrush current during startup.
Cost-Effective
Three-phase power is widely available in industrial settings, offering lower long-term operational costs than single-phase motors.
Bulk procurement and standardized designs make them more cost-competitive, especially for power ratings >1 kW.
Three Phase Motor Operating Guide
Motor can be transmitted through coupling, reduction gear or belt. But it is not suitable for transmitted through belt of motors above 4kW and 2 pole, above 30 kW and 4 pole. The transmission range of V- belt may be enlarged with using a small belt pulley. It is allowed to use coupling only for fan side if the second shaft extension motor.
With belt drive, the centre line of the motor shaft should be paralleled with centre line of the load shaft , centre line of the belt should be perpendicular to the centre line of the shaft. With coupling drive, the centre line of the motor should coincide with centre line of the load shaft.
For vertical installed motor, other axial load is not allowed to shaft extension except for belt ( or its equivalent ).
Cases
Medical Devices

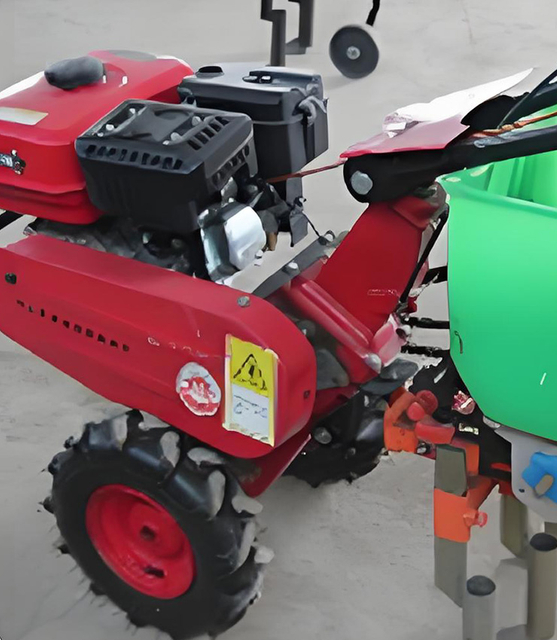

Small Machinery

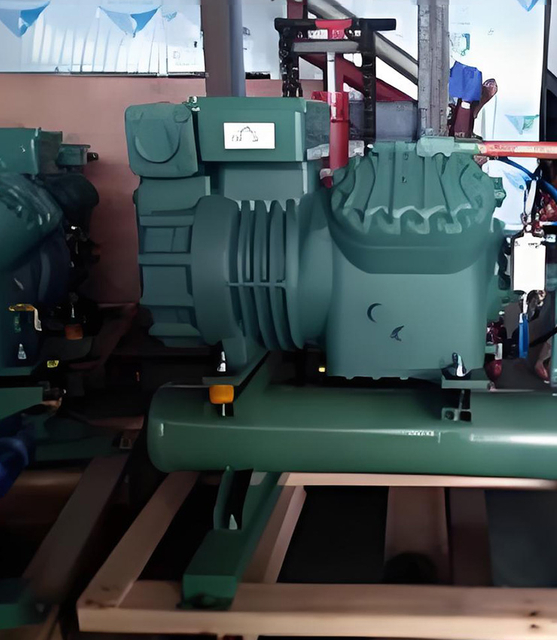

Refrigeration

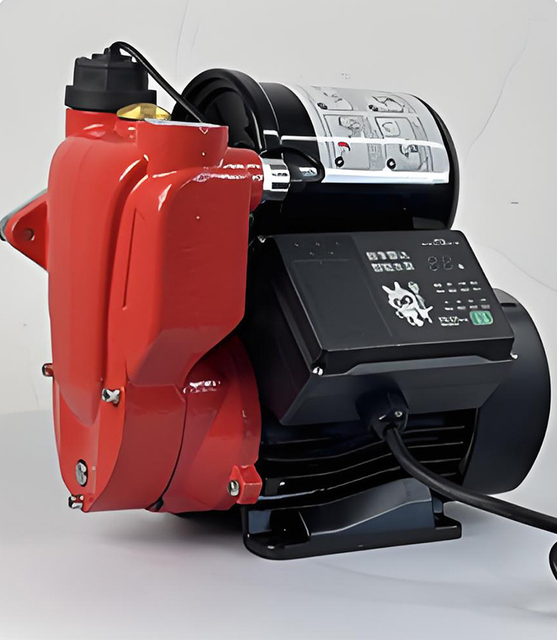

Water Pump

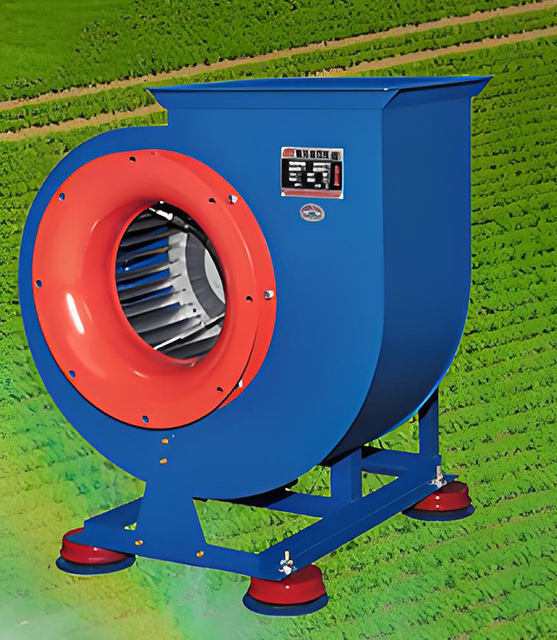

Fans

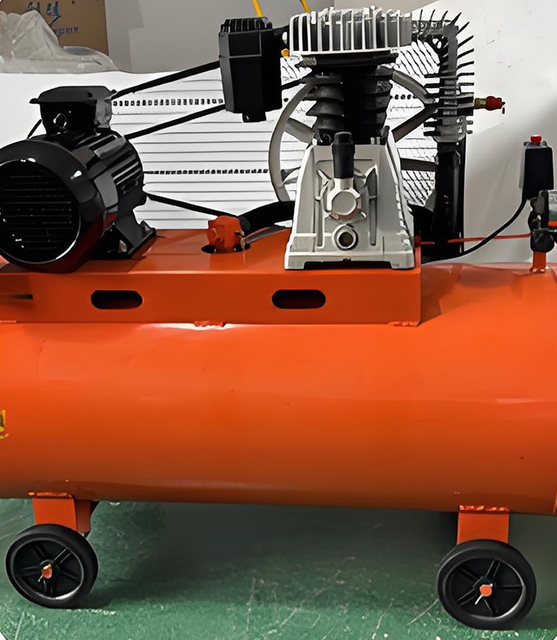

Air Compressor
FAQs
What are the types of three-phase induction motors?
Based on load type (constant/variable), starting torque, and operating duration, with a 10%~20% safety margin to avoid overload.
How to control the speed of a three-phase induction motor?
Variable frequency drive (VFD) (most common, adjusts supply frequency) Pole-changing (switching stator winding poles, limited to multi-speed motors) Rotor resistance control (for wound-rotor motors only)
Difference between Direct-On-Line (DOL) and Star-Delta (Y-Δ) starting?
DOL: Simple but high starting current (5~7× rated current), suitable for small motors. Y-Δ: Reduces starting current (~1/3), used for medium/large motors but lowers starting torque.
How to maintain a three-phase induction motor?
Regularly inspect and lubricate bearings (grease replenishment / replacement) Clean cooling vents and housing Monitor operating current, vibration, and temperature Periodically measure insulation resistance (megohmmeter test)
