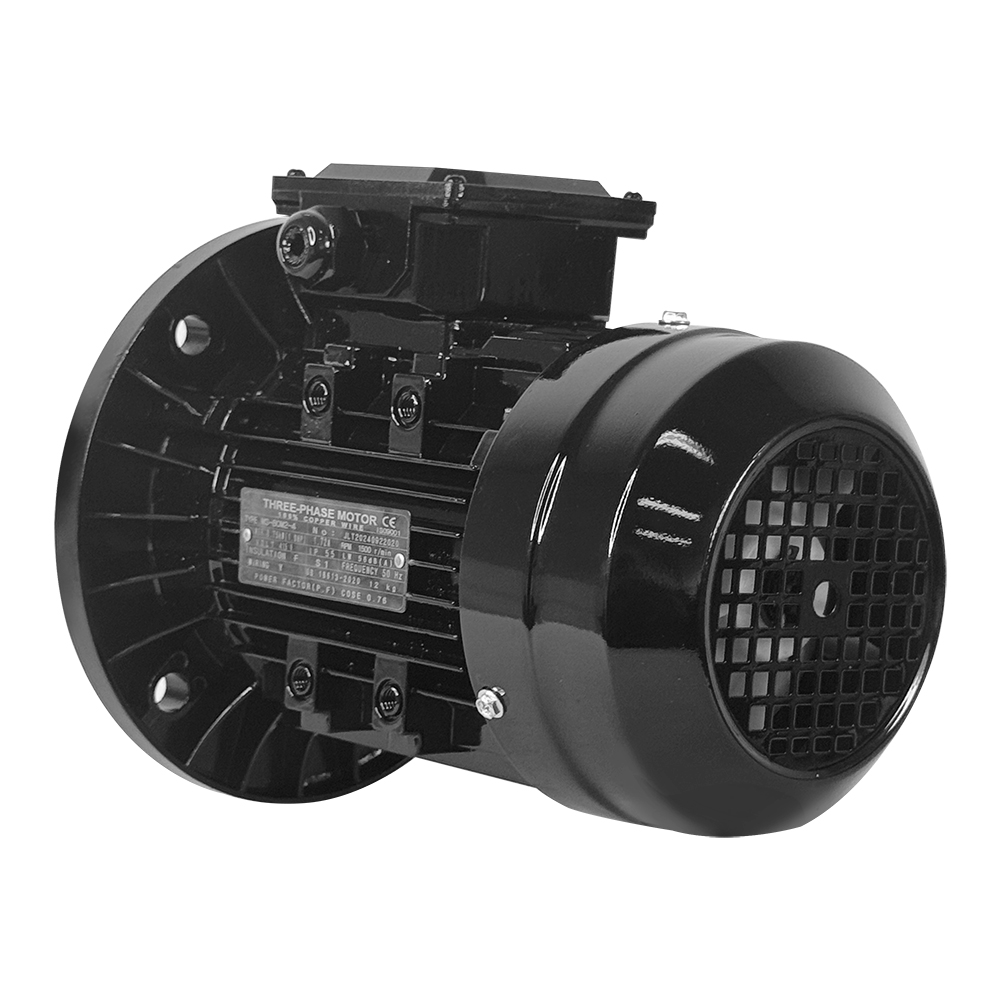

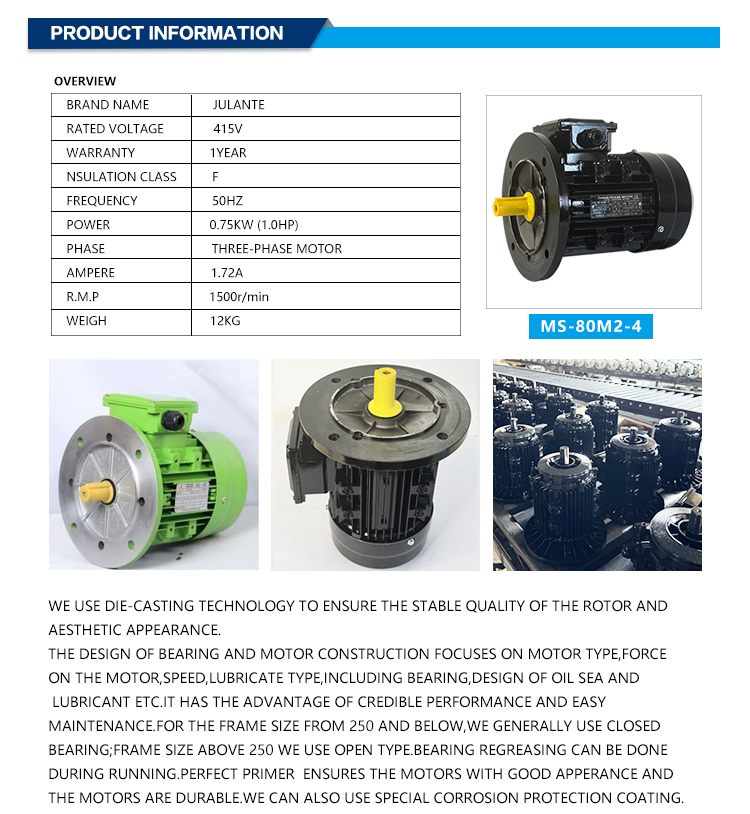

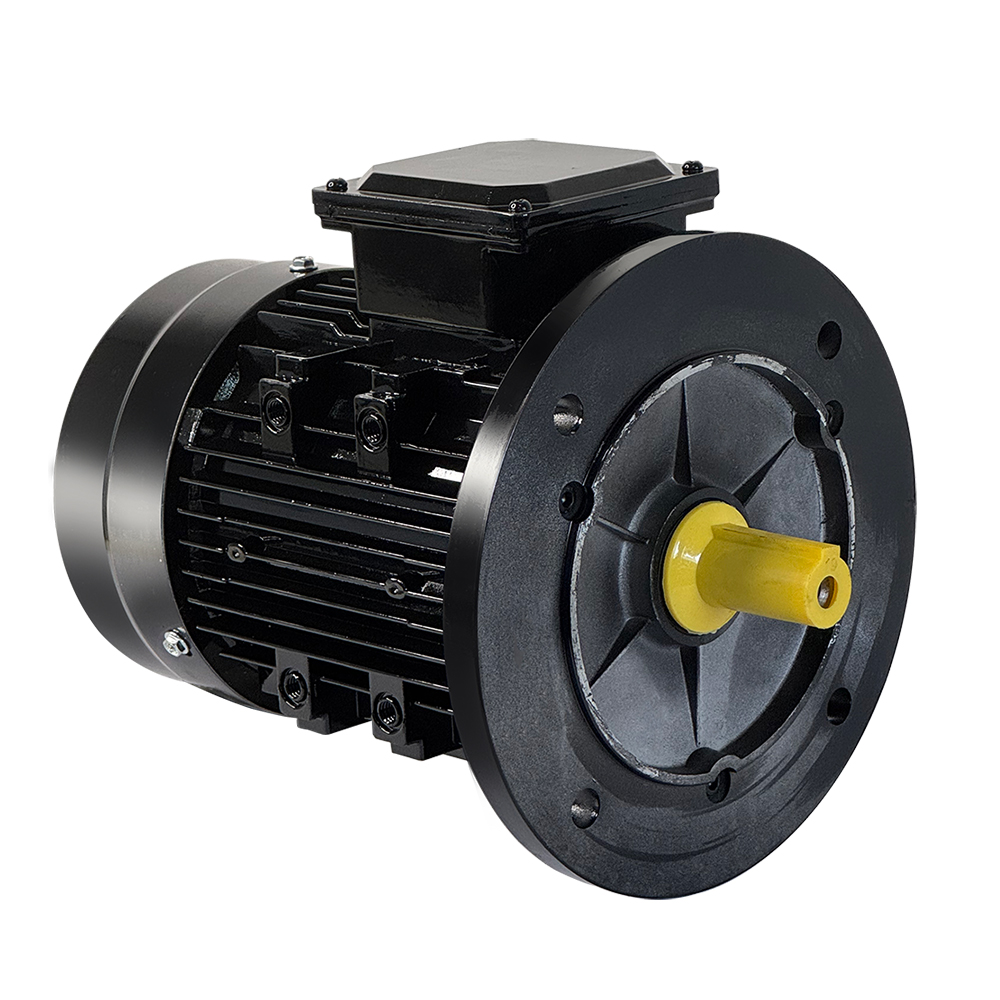

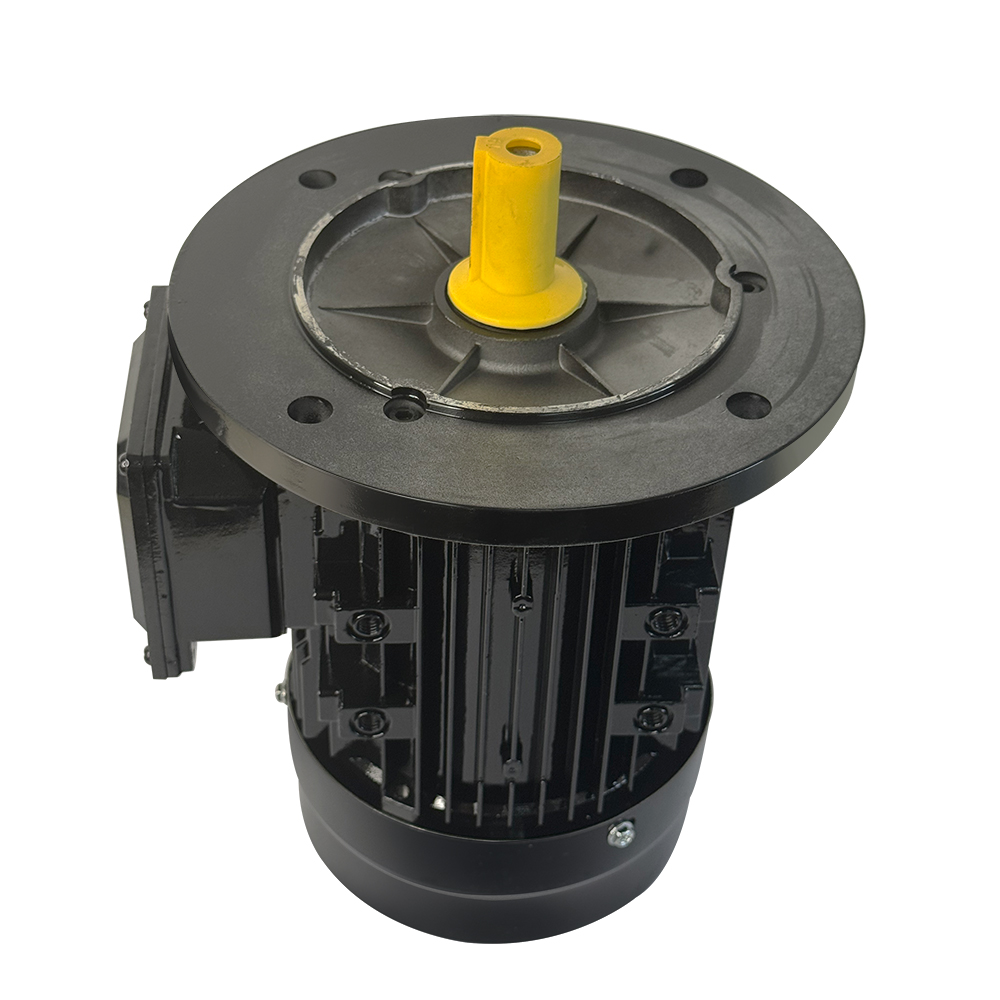

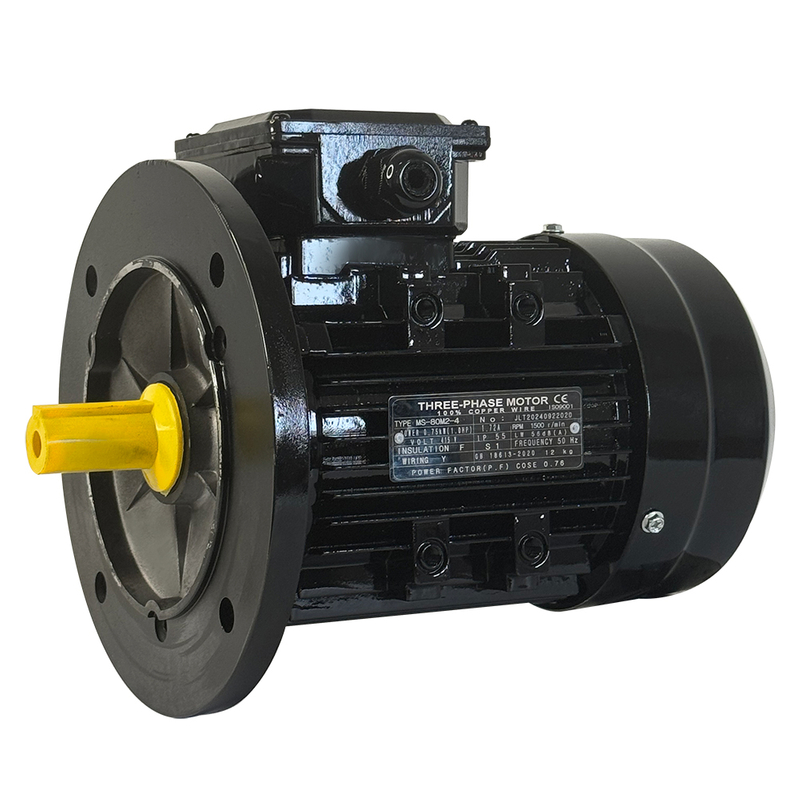

As a core model in the MS series, it features a rated power of 0.75KW (1.0HP), rated voltage of 415V, operating frequency of 50Hz, rotational speed of 1500R/min, rated current of 1.72A, and net weight of 12KG. Key engineering highlights include a die-cast rotor for stability, precision bearings for low noise, a cast iron casing for durability, and insulation class F (heat resistance up to 155°C). It complies with CE and ISO9001 certifications, ensuring reliable performance in industrial environments. With a power factor of 0.76, it is energy-efficient for long-term operation, making it a preferred choice for factories and workshops requiring consistent mechanical drive power.
High-Precision Die-Cast Rotor: The rotor is manufactured using advanced die-casting technology, ensuring uniform material distribution and balanced rotation. This reduces vibration (≤0.1mm amplitude) and noise (operating noise ≤70dB), while improving energy efficiency—the motor’s efficiency rating reaches IE2 (International Efficiency Class 2), saving 10–15% electricity compared to IE1 motors.
Stable Power Output: With a rated power of 0.75KW and rotational speed of 1500R/min, the motor delivers consistent torque (4.77N·m) for mechanical drive tasks. It maintains stable performance even under 110% overload (for up to 1 minute), avoiding sudden shutdowns in industrial production.

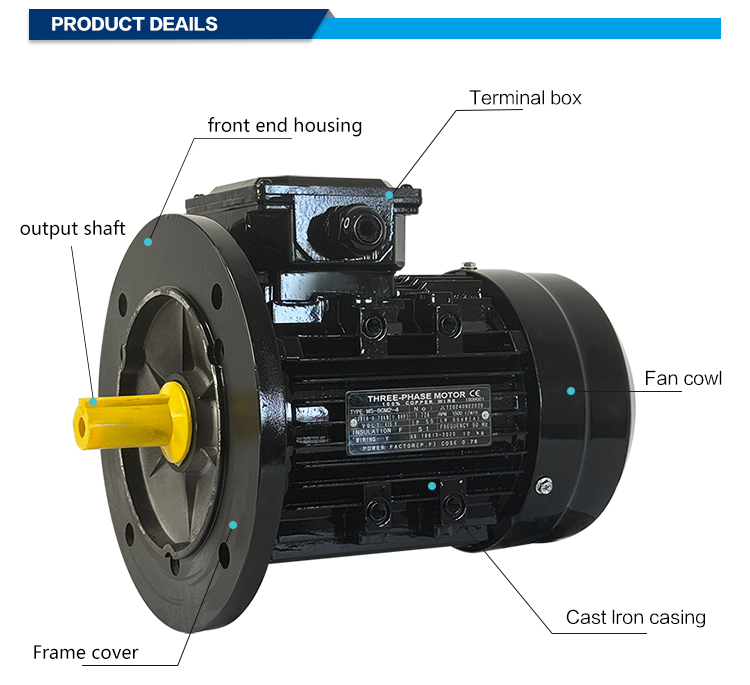

Cast Iron Casing: The outer casing is made of high-quality cast iron, which has excellent impact resistance and heat dissipation. It can withstand harsh industrial conditions (e.g., high temperatures, dust, or mechanical collisions) and prevents deformation or damage to internal components.
Insulation Class F: The motor windings use Class F insulation materials, which can withstand temperatures up to 155°C. This allows the motor to operate in high-temperature environments (e.g., near heating equipment) without insulation breakdown, extending its service life.
IP55 Protection Rating: The motor has an IP55 rating, meaning it is fully dustproof and protected against low-pressure water jets (from any direction). This ensures reliable operation in dusty workshops or outdoor industrial areas with occasional rain.
Low-Maintenance Bearings: For frame sizes ≤250mm (including this model), the motor uses closed bearings that require no regular lubrication. For frame sizes ＞250mm, open bearings are available for easy regreasing during operation—reducing maintenance time and costs.
Batch Customization Support: We offer batch customization for parameters such as voltage (e.g., 380V, 220V), frequency (60Hz), and mounting type (B5 flange type). For orders of 50 units or more, we also provide custom branding and packaging to meet your company’s needs.
Band Saw Machine Drive: The primary application is powering band saw machines in woodworking, metalworking, or plastic processing factories. The 1500R/min speed and 4.77N·m torque ensure smooth, precise cutting of materials (e.g., hardwood, steel plates, or plastic sheets).
Conveyor Belt Drive: Used to drive small to medium-sized conveyor belts in logistics, mining, or food processing plants. It provides consistent speed to ensure uniform material transportation, improving production line efficiency.
Pump Drive: Suitable for powering centrifugal pumps in water treatment, chemical, or agricultural industries. The stable torque ensures the pump maintains a constant flow rate, avoiding fluctuations in water supply or chemical delivery.
Fan Drive: Used with industrial fans (e.g., ventilation fans, cooling fans) in factories or warehouses. The energy-efficient design (IE2) reduces electricity costs for long-term fan operation.
Insulation class F refers to the maximum temperature the motor’s insulation materials can withstand (155°C). This is higher than lower classes (e.g., Class B: 130°C), allowing the motor to operate in high-temperature environments (e.g., 40°C–60°C workshops) without insulation damage. It also provides a safety margin for temporary overloads.
Yes. The motor is compatible with standard VFDs, allowing you to adjust the rotational speed (from 0 to 1500R/min) to match your equipment’s needs. However, we recommend using a VFD with a power rating ≥0.75KW and setting the maximum frequency to 50Hz to avoid overheating.
B5 mounting (flange mounting) means the motor is fixed via a flange on the front end of the housing, which is suitable for equipment where the motor needs to be directly connected to the driven component (e.g., band saw machine spindles). Other types (e.g., B3: foot mounting) are used when the motor is installed on a base. We can provide B3 or B5 mounting options based on your needs.
Every motor undergoes strict factory inspection, including: (1) Winding resistance testing (to detect turn-to-turn short circuits); (2) Insulation resistance testing (to ensure electrical safety); (3) No-load test (to check speed and noise); (4) Load test (to verify power and torque). A test report is provided for each motor to confirm quality.
