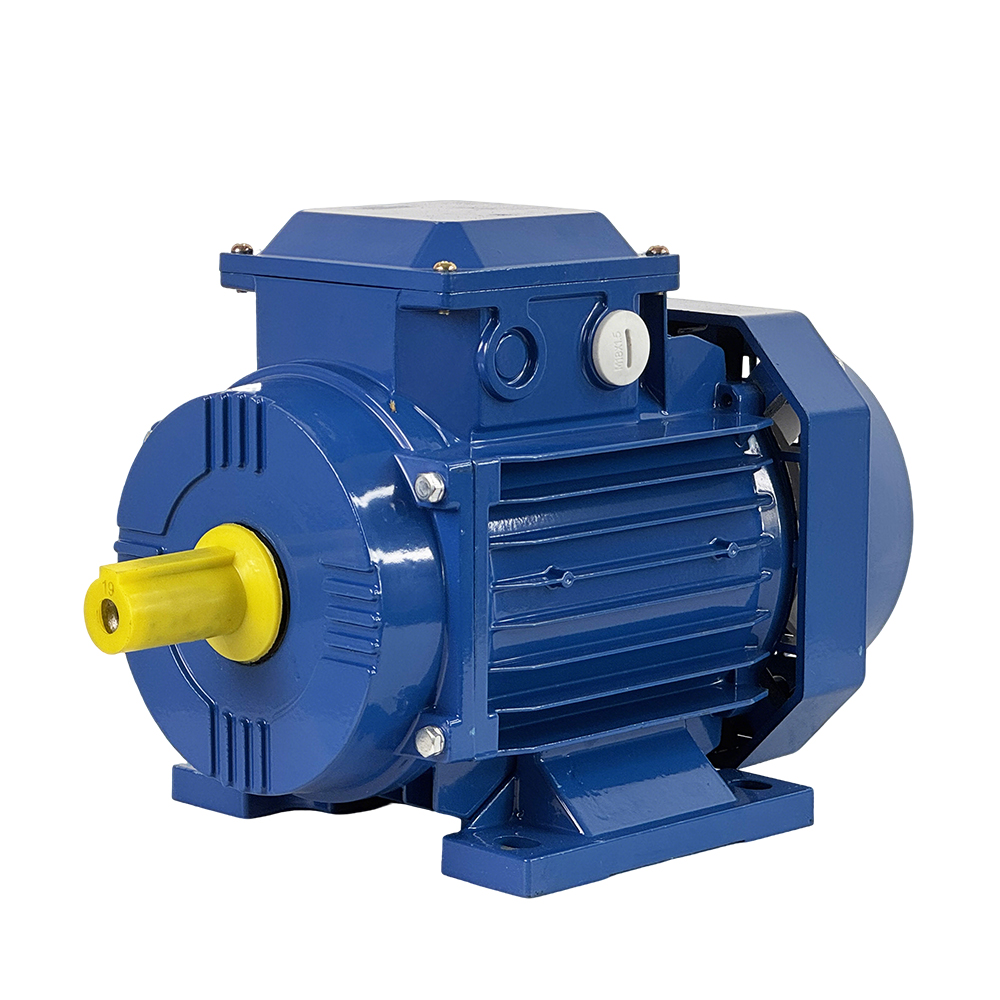

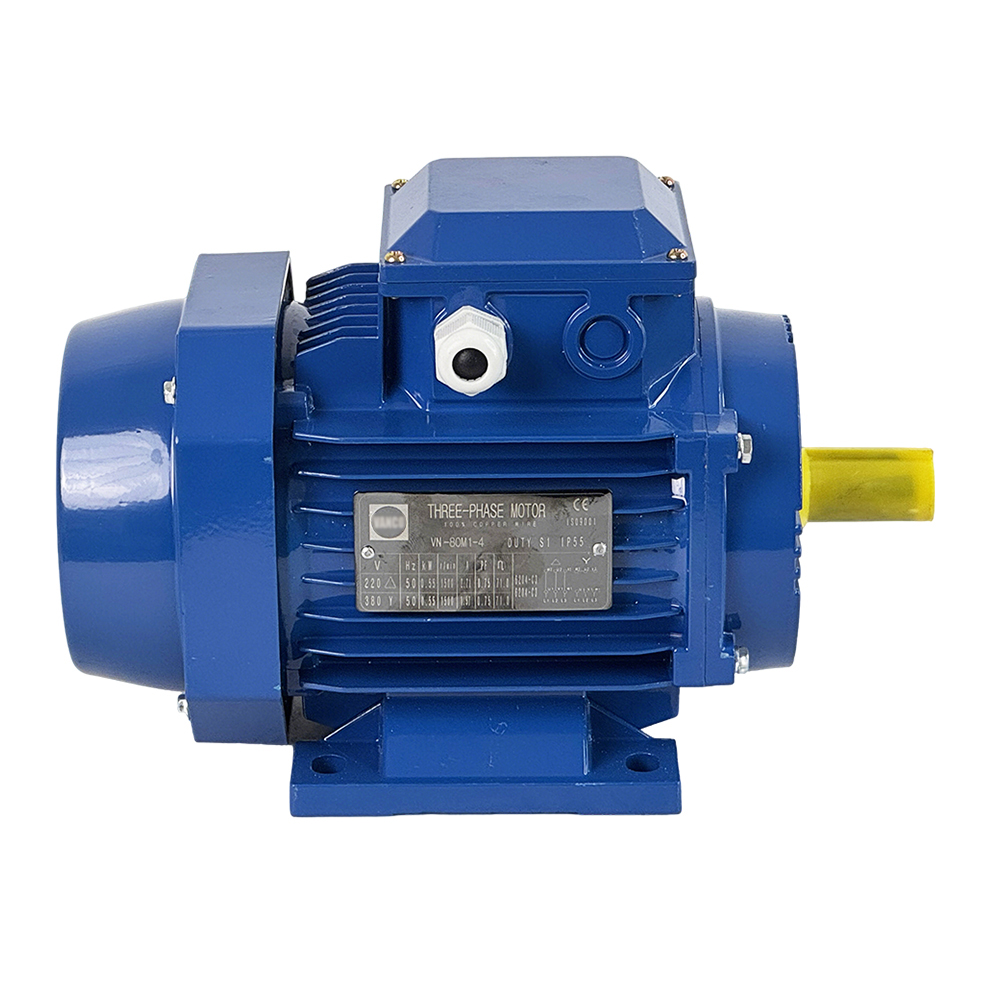

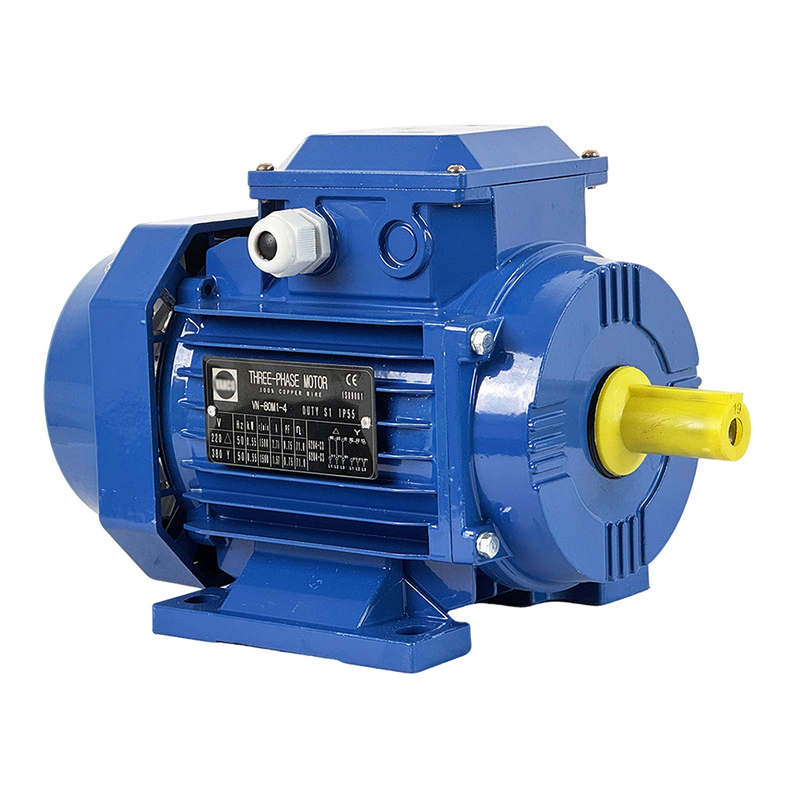

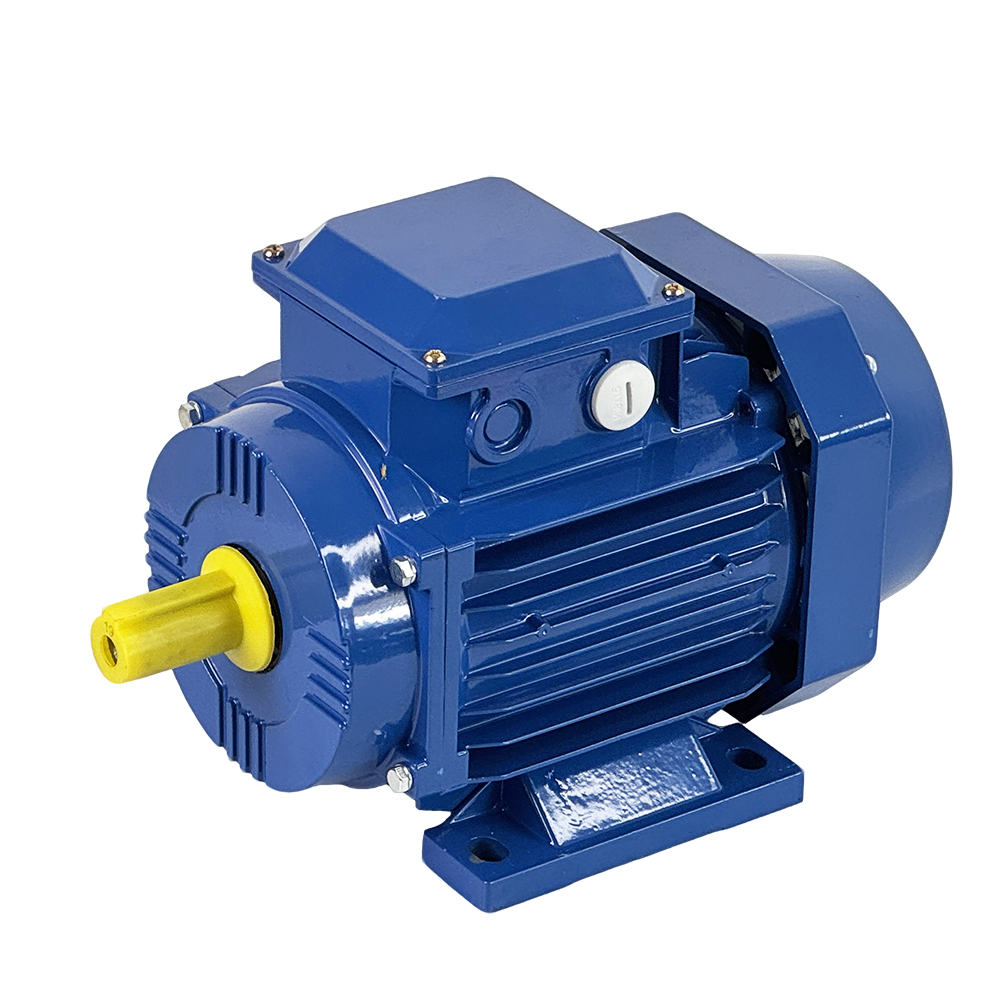

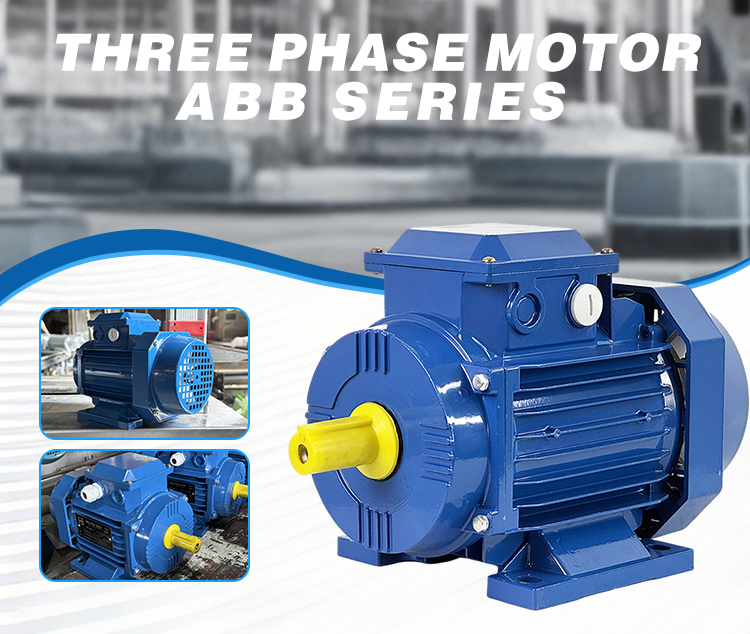

As a totally enclosed squirrel cage motor, it is built to handle continuous operation (S1 duty cycle) while adhering to IEC Low Voltage Standards and global certifications like ISO9001, CE, and CSA. With a rated power of 0.55KW/0.75HP, dual voltage compatibility (220VΔ/380VY), and frequency of 50HZ, this motor offers adaptability for different electrical systems—making it a go-to choice for factories, textile mills, and machine tool operations. Its 1500R/min rated speed delivers consistent torque, while the IP55 protection rating ensures resistance to dust and water, enabling use in diverse working environments. Whether powering textile machinery or machine tools, the VN-80M1-4 motor guarantees reliable performance and long-term cost savings.
A key advantage of the VN-80M1-4 motor is its ability to operate on 220V (delta connection) or 380V (star connection), eliminating the need for separate motor models for different electrical grids. This flexibility is ideal for businesses with variable power supplies or those expanding into markets with different voltage standards. The motor’s internal wiring is pre-configured for easy voltage switching, reducing installation time and labor costs.

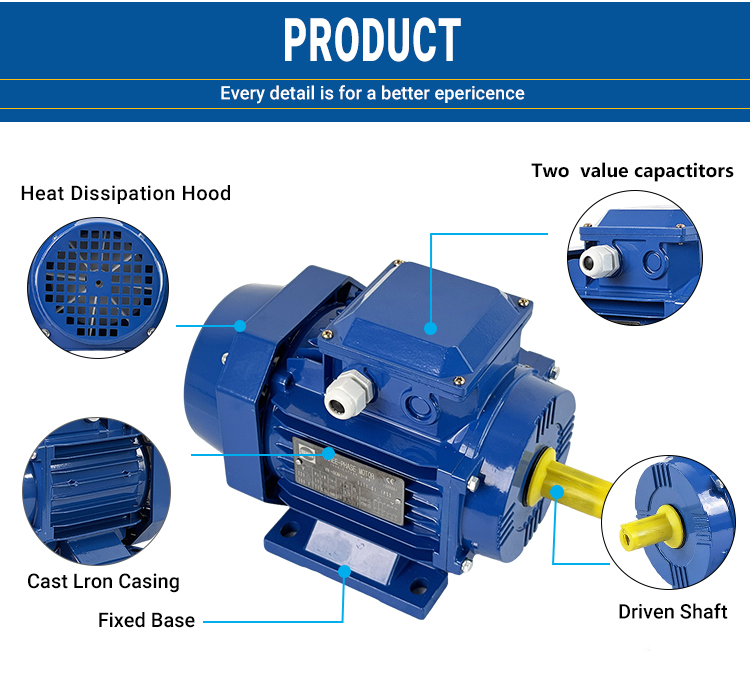

The motor features a rolled steel shell that combines high strength with lightweight design, resisting impact and reducing operational vibration. This structure, paired with a cast iron casing, minimizes noise levels—critical for workspaces like textile mills where excessive noise can affect worker comfort. Additionally, high-density, rust-proof, and moisture-proof bearings ensure smooth shaft rotation, further lowering noise and preventing premature wear even in humid environments.
Equipped with a 100% COPPER WIRE COIL, the motor maximizes electrical conductivity, reducing energy loss and heat generation. It is paired with a high-quality cold-rolled silicon steel sheet that lowers core losses, enhancing overall efficiency and ensuring the motor runs cool even under full load. The S1 duty cycle (continuous operation) capability means the motor can run 24/7 without overheating, making it suitable for non-stop production lines.
The VN-80M1-4 motor meets strict global standards, holding ISO9001 quality certification, CE certification (for European markets), and CSA security certification (for North American and international safety compliance). These certifications validate the motor’s adherence to safety, performance, and environmental requirements, ensuring it can be integrated into global supply chains without regulatory barriers. The IP55 protection rating further reinforces safety by preventing dust accumulation and water ingress, which could lead to electrical faults.
In the textile sector, the motor’s 0.55KW/0.75HP power and 1500R/min speed are perfectly matched to drive equipment like yarn winders, looms, and fabric cutters. Its low noise operation ensures a comfortable working environment for textile workers, while dual voltage compatibility allows it to be used in textile mills across regions with different electrical systems. The IP55 rating also protects against lint and minor moisture—common in textile production facilities.
For machine tools (e.g., small lathes, drills, and milling machines), the motor’s stable torque output and precision-driven shaft ensure accurate machining results. The continuous operation capability (S1 duty cycle) supports long production runs, while the durable construction withstands the vibrations typical of machine tool operations. Additionally, the motor’s compliance with IEC standards ensures compatibility with most machine tool control systems.
In mine equipment class and industrial settings, the motor’s IP55 protection and robust structure make it suitable for powering auxiliary devices like conveyor belt drives, small pumps, and ventilation fans. It can resist the dust and humidity common in mining environments, while its energy-efficient design helps reduce power consumption in remote mining sites where energy costs are high.
The motor is also used in manufacturing small electrical appliances, such as industrial-grade fans and compact compressors. Its compact size and lightweight design (compared to higher-power motors) make it easy to integrate into appliance assemblies, while the 100% copper coil ensures reliable performance—critical for appliances that require long service lives.
The motor’s junction box includes a wiring diagram for 220VΔ (delta) and 380VY (star) connections. To switch voltages, turn off the power supply first, then rewire the terminals according to the diagram (delta for 220V, star for 380V). We recommend having a qualified electrician perform the switch to avoid wiring errors, which could damage the motor or cause electrical hazards.
The motor’s F-class insulation allows it to operate safely at a maximum ambient temperature of 40°C (104°F) and a maximum winding temperature of 155°C (311°F). Operating the motor in temperatures exceeding this range may reduce insulation life and increase the risk of overheating. For high-temperature environments, consider adding a custom heat dissipation kit (available upon request).
Yes, the VN-80M1-4 motor is compatible with most standard frequency inverters, but it is important to select an inverter rated for 0.55KW/0.75HP motors and set the inverter parameters (e.g., voltage, frequency, and overload protection) to match the motor’s specifications. Using an undersized inverter may cause the motor to run inefficiently or trip during operation.
The motor has a net weight of approximately 8kg (varies slightly by batch), which makes it easy to install and handle—even in tight spaces. The lightweight design does not compromise durability, as the rolled steel shell and cast iron casing maintain structural integrity.
Yes, the motor includes a B3T mounting bracket as standard, which is compatible with most industrial equipment mounting interfaces. The bracket is made of the same high-strength steel as the motor shell, ensuring secure installation and reducing vibration transfer to the driven equipment. If you require a different mounting type (e.g., B5 flange), please specify it when ordering.
