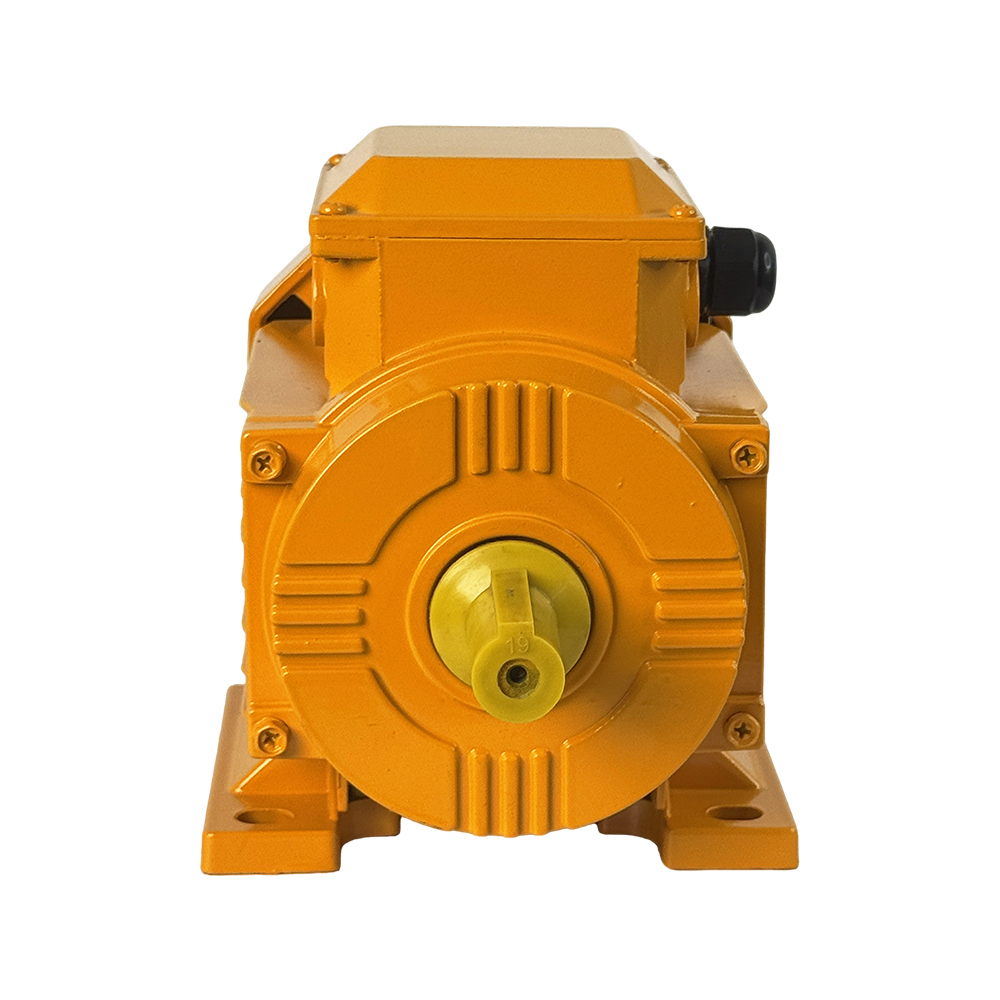

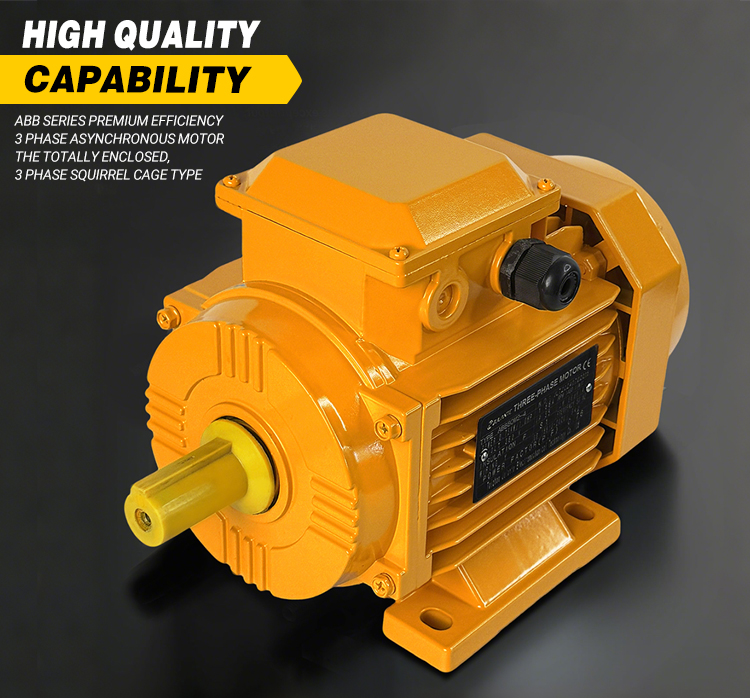

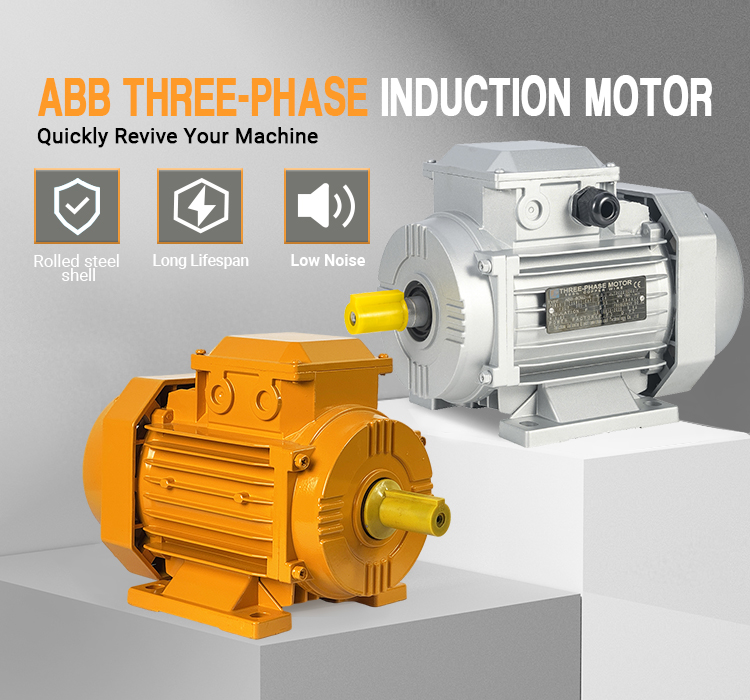

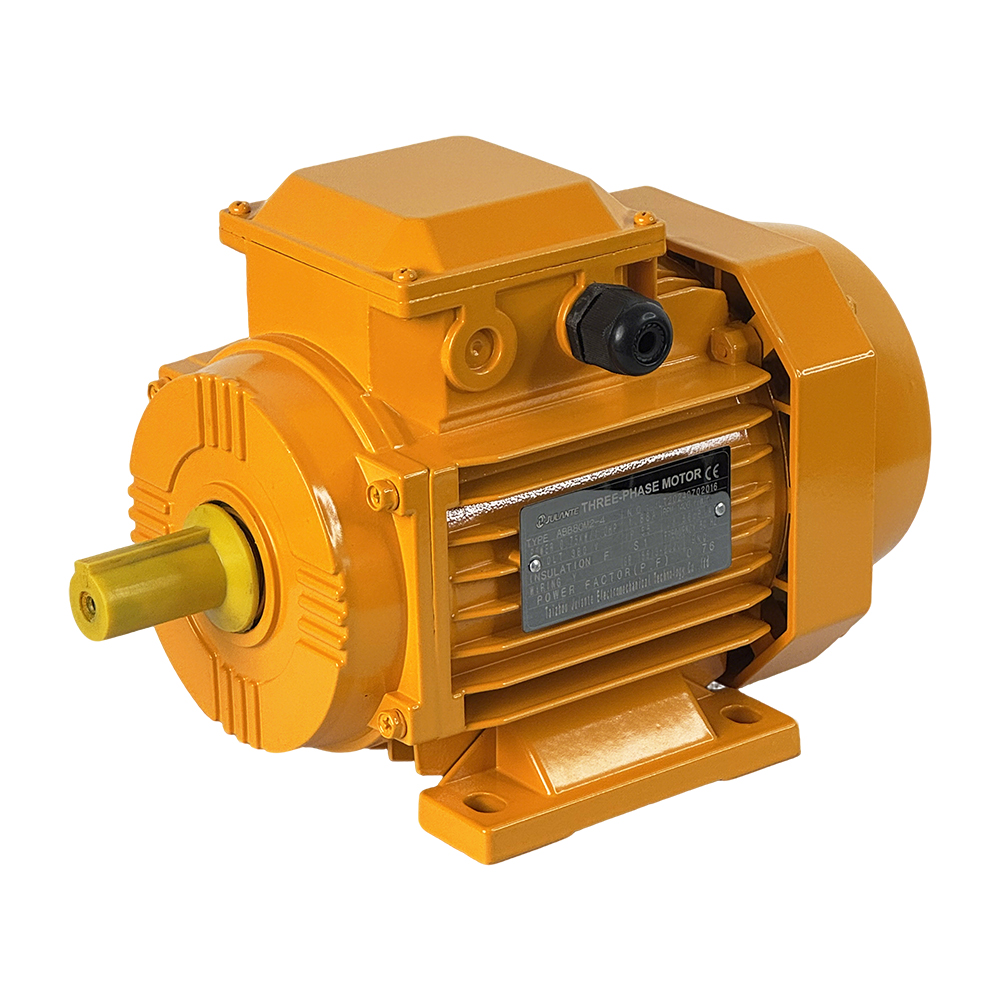

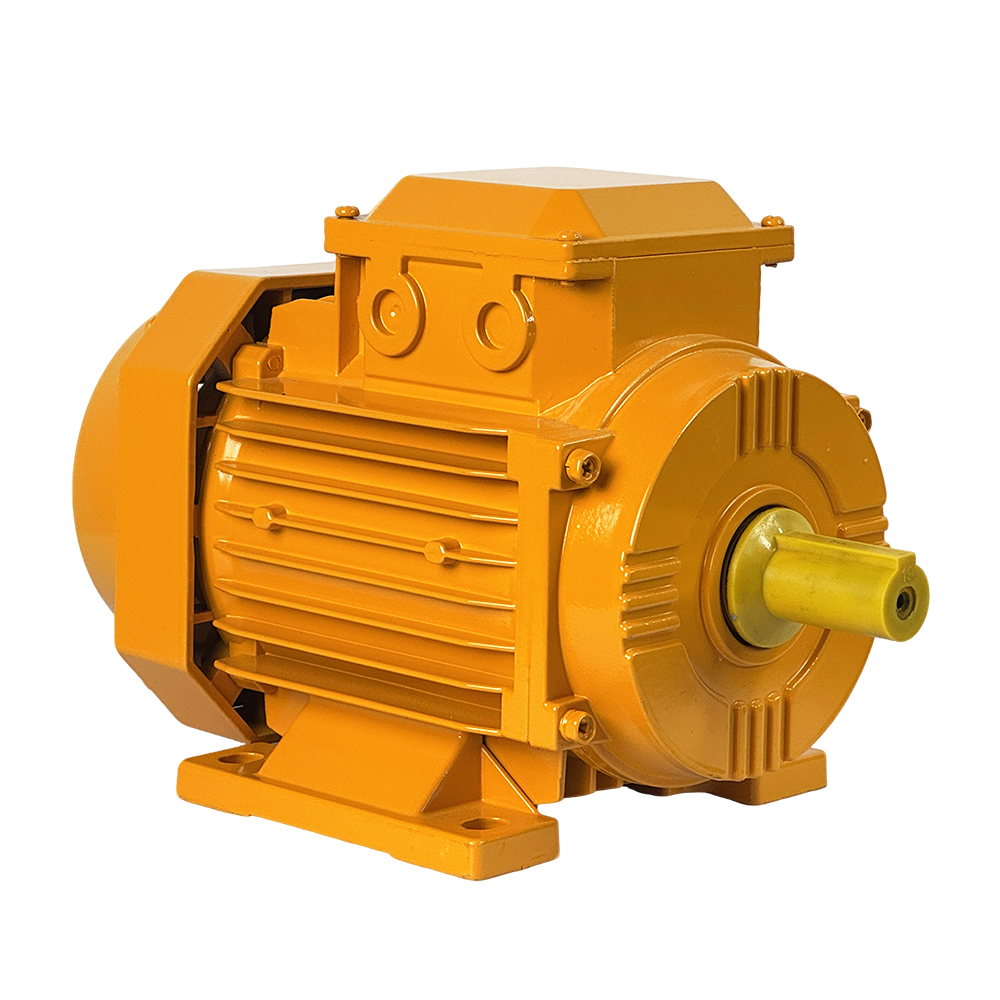

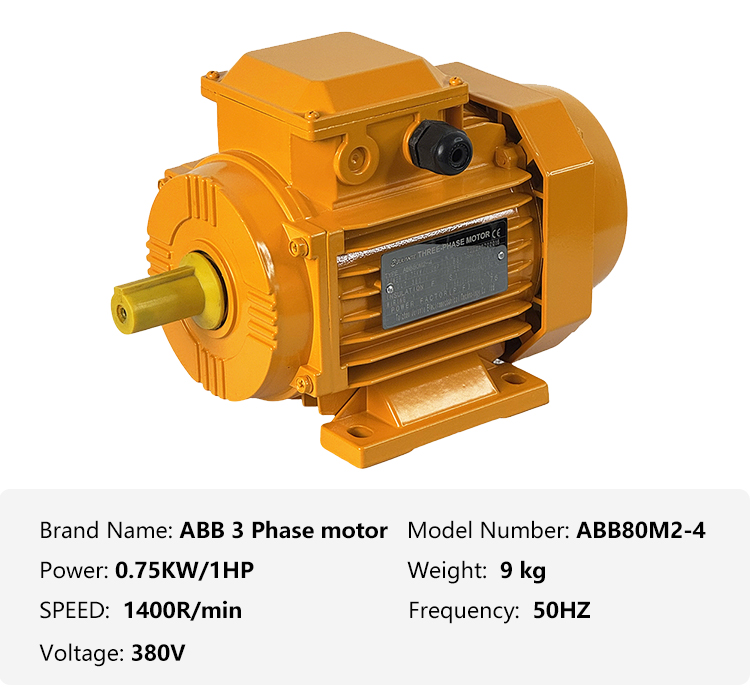

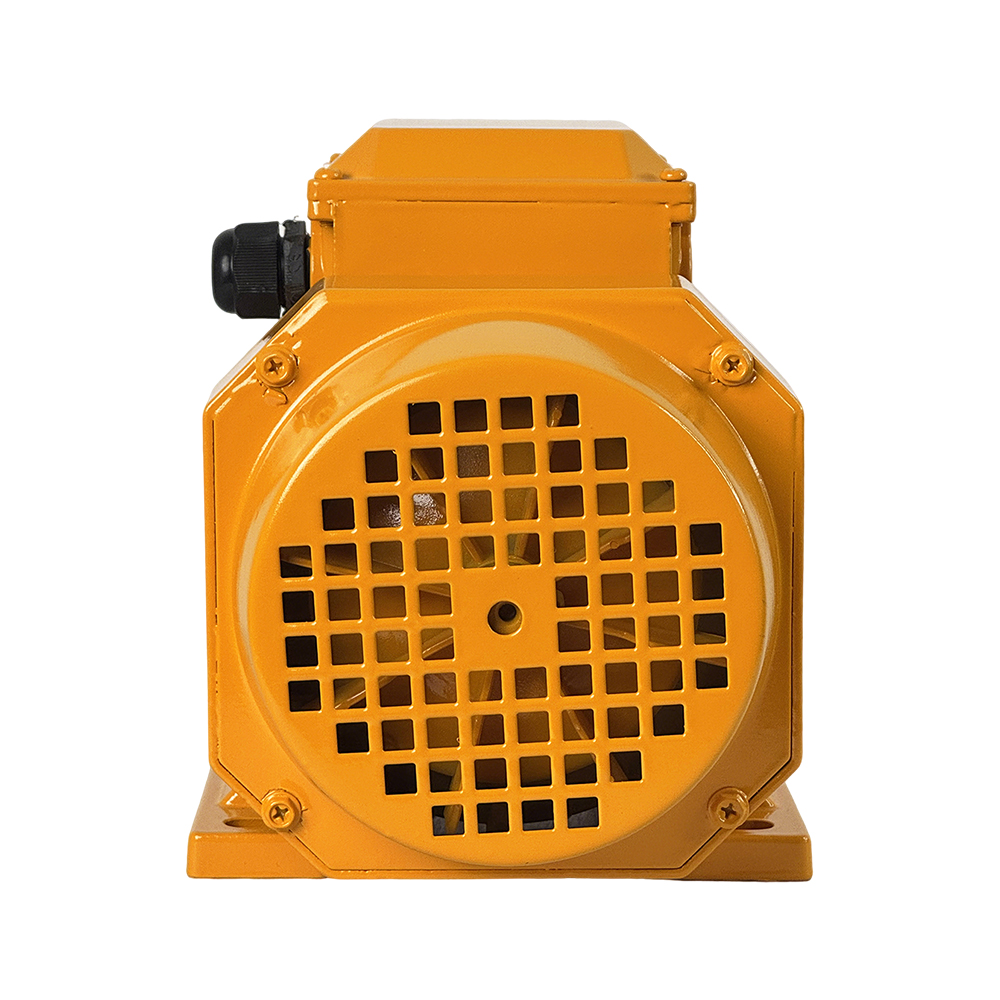

Engineered for demanding continuous operation scenarios, this totally enclosed, squirrel cage-type motor serves as a dependable cornerstone for industrial drive systems. Operating at a rated power of 0.75KW/1HP, a standard voltage of 380V, and a frequency of 50HZ, the unit delivers a highly consistent speed of 1400R/min. This precise rotational output makes it exceptionally suited for driving mechanical equipment where reliable torque and minimal operational disruption are critical to maintaining production schedules. The exterior presents a smooth, industrial-grade finish on its rolled steel shell, paired with the heavy, solid tactile feel of a cast iron casing, ensuring structural integrity over a long lifespan. Protected by an IP55 protection rating, the internal components are thoroughly shielded against dust accumulation and low-pressure water jets, allowing for deployment in harsh, particle-heavy, or damp environments. Backed by rigorous CSA and CE certifications, this motor aligns directly with global safety and performance benchmarks, offering procurement teams and facility managers a compliant, low-risk component for their operational infrastructure.

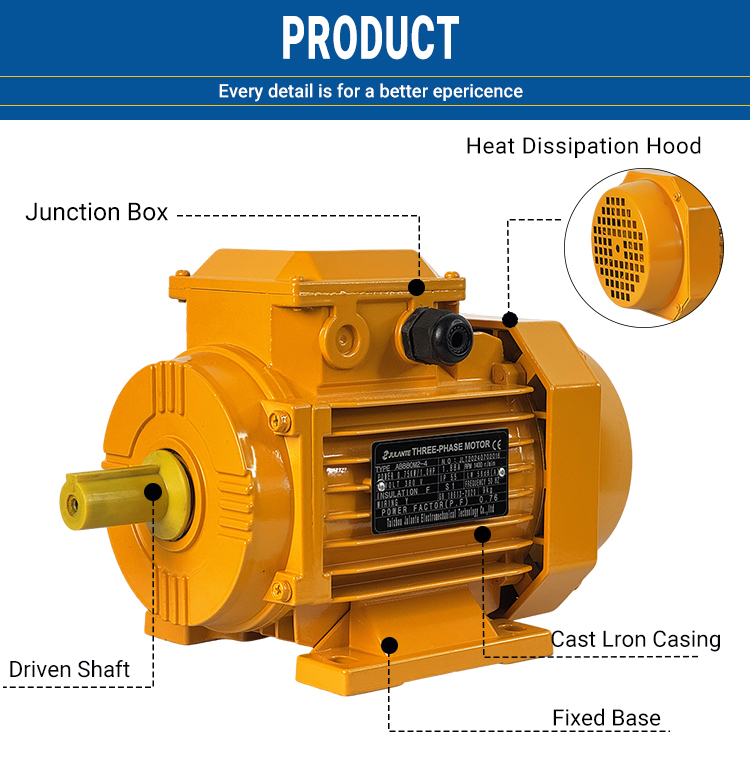

The physical architecture of the motor is built around a dense rolled steel shell that offers exceptional mechanical strength. This rigid enclosure effectively resists physical deformation and dampens internal vibrations during operation, translating directly to a quieter workspace and less mechanical stress on adjacent mounting brackets. Complemented by a heavy-duty cast iron casing, the framework provides superior thermal resistance and physical durability. This ensures the motor easily handles long hours of continuous operation (S1 duty cycle) without structural fatigue or performance degradation. To accommodate complex industrial setups, the motor supports standardized installation configurations, including IMB3 and IMB5 mounting options, enabling rapid integration and exact alignment with diverse machinery.

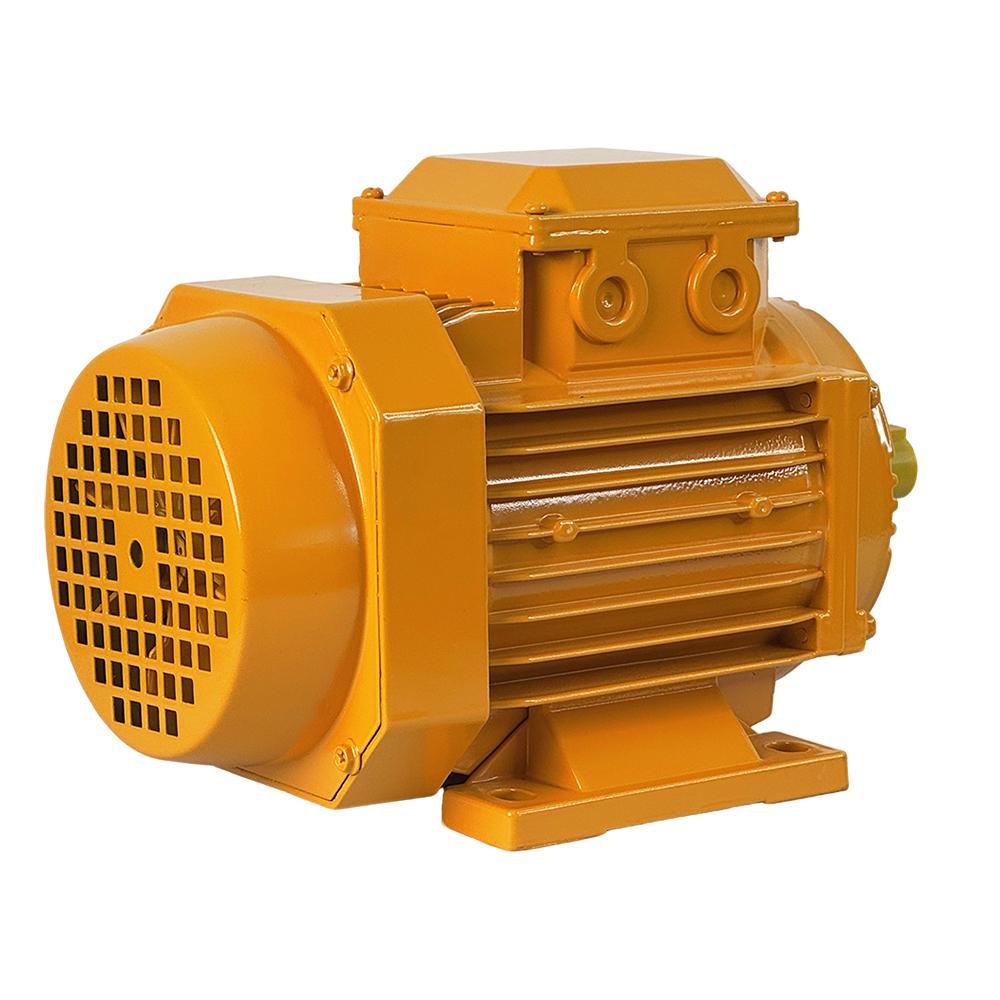

At the electromagnetic core lies a precision-wound 100% COPPER WIRE COIL, selected for its superior electrical conductivity. This minimizes internal energy loss and prevents localized overheating during peak loads. The coil is paired with a high-quality cold-rolled silicon steel sheet—a specialized material designed to lower magnetic core losses and maintain a cooler operating temperature, thereby elevating overall electromechanical efficiency. To manage thermal output, the motor utilizes an IC411 standardized cooling system, featuring a built-in heat dissipation hood that actively accelerates airflow across the casing fins. Combined with the motor's F-class insulation, the internal winding is fully protected against electrical breakdown even when subjected to elevated ambient temperatures, ensuring stable continuous running.
Operating with a power factor (P.F) of 0.76, this motor is engineered to optimize active energy utilization. By aligning with international high-efficiency standards (comparable to IE series and NEMA benchmarks), it significantly reduces long-term power consumption and helps facilities lower their operational carbon footprint. The calibrated 1400R/min rated speed ensures a balanced, steady torque output essential for fluid-handling and air-compression equipment. Furthermore, the rotor shaft is supported by high-density Seiko bearings, which are factory-treated for rust and moisture resistance. These bearings provide exceptionally smooth rotation with a distinctively quiet acoustic profile, drastically reducing mechanical wear and extending the maintenance intervals for the drive unit.

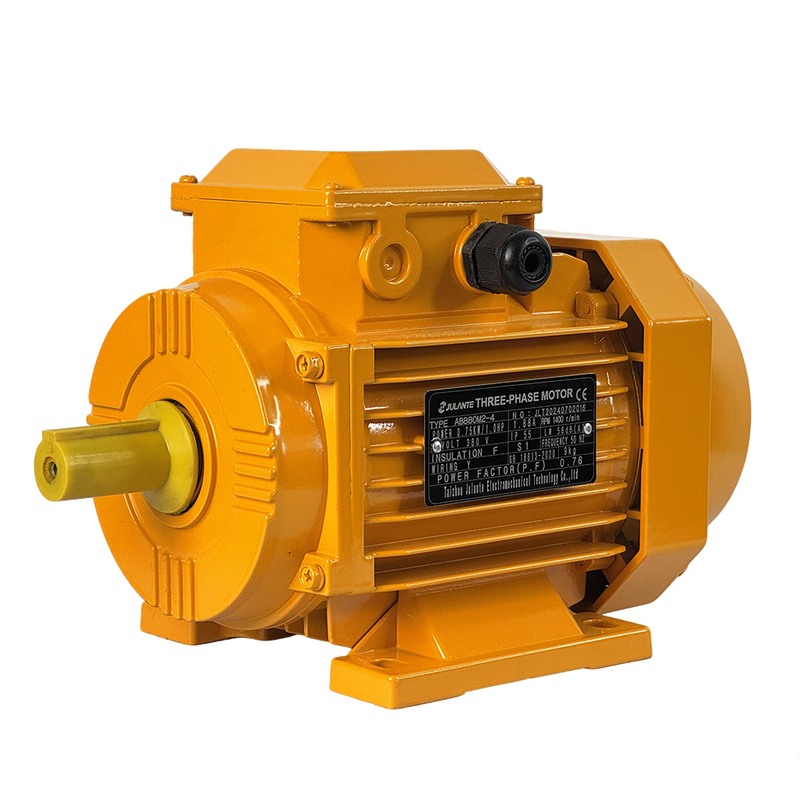

The ABB80M2-4 Three-Phase Motor undergoes a stringent 100% end-of-line factory inspection before dispatch. This comprehensive quality control protocol includes full-link traceability for all raw materials, ensuring industrial-grade reliability for every unit. It has passed rigorous testing and holds official CSA Security Certification and CE certification, confirming absolute compliance with international electrical safety directives. The IP55 protection rating acts as a physical barrier against abrasive dust ingress and multi-directional low-pressure water jets. This makes the motor highly dependable for deployment in challenging settings, such as processing workshops, covered outdoor auxiliary stations, or areas subject to regular washdowns.
Air Compressors: The consistent 1400R/min speed and 0.75KW/1HP power provide the exact mechanical force required to maintain steady tank pressure without stalling, supporting smooth production processes.
Water Pumps: High efficiency and low acoustic output ensure continuous fluid transfer in processing plants, preventing excessive energy waste and minimizing workplace noise pollution.
Fans and Blowers: The IP55 protection effectively shields the internal windings from the condensation, temperature fluctuations, and occasional moisture exposure typical in large-scale air handling units.
Refrigeration Equipment: Reliable heat dissipation capabilities prevent thermal overload during the constant cycling of climate control operations, directly reducing the overall energy cost in commercial buildings or industrial facilities.
Medical Devices: The exceptionally low vibration profile and quiet operation prevent mechanical interference with sensitive diagnostic tools, ensuring accurate readings and patient comfort.
Small Machinery: A compact design paired with durable construction ensures minimal maintenance—critical for devices that require high uptime. Compliance with global safety certifications makes it a trusted choice for medical facilities with strict regulatory requirements.
To support diverse procurement requirements, we offer comprehensive OEM and ODM customization services. Facility managers and project engineers can request specific voltage adaptations, custom exterior color coatings, and specialized treatments for unique environmental conditions. Our manufacturing infrastructure maintains a standardized production capacity, ensuring rapid fulfillment and strict lead-time commitments for large-scale deployments. Furthermore, we provide flexible international trade terms to streamline cross-border logistics. Post-delivery, clients benefit from a globalized service network and digital support infrastructure, including online sizing configuration tools, which significantly simplify lifecycle management and reduce long-term maintenance overhead.
The motor is specifically designed for 380V voltage and 50HZ frequency, which is optimized for its electrical components and performance. Operating strictly within these parameters maximizes the efficiency of the copper windings and magnetic core. Using it with non-specified voltage or frequency may cause overheating, coil damage, or reduced lifespan. If you need a motor for other voltage standards, please consult our technical team for customized solutions.
Under normal operating conditions (S1 duty cycle, clean environment), the motor requires minimal maintenance. We recommend checking the Seiko bearings every 6–12 months for wear or lubrication needs, and inspecting the wiring and junction box for loose connections annually. The rolled steel and cast iron structure is highly corrosion-resistant, so no regular painting or rust treatment is required.
With an IP55 protection rating, the motor can resist dust and water jets (e.g., light rain or cleaning sprays), but it is not fully waterproof. It is highly suitable for covered outdoor areas (such as factory yards with shelters or open-air pumping stations) but should not be submerged in water or exposed to heavy rain for extended periods. For fully outdoor or wet environments without a protective canopy, we recommend upgrading to a motor with a higher IP rating (e.g., IP65).
Yes, the ABB80M2-4 Three-Phase Motor comes with a 12-month warranty from the date of delivery, covering defects in materials and workmanship. The warranty does not apply to damage caused by improper installation, voltage mismatches, or unauthorized modifications. For warranty claims, please provide the motor's serial number (NO: JLT20240702016) and proof of purchase to our service department.
The motor is calibrated for a fixed 1400R/min speed and is not designed for direct variable speed operation out of the box. However, its internal winding and insulation system are optimized for Inverter Duty. If your application requires adjustable speed, we recommend pairing it with a compatible variable frequency drive (VFD) and consulting our technical team to ensure the VFD matches the motor's electrical specifications (e.g., power, voltage, and current) for safe and precise process control.
