What Is An AC Motor And How It Works

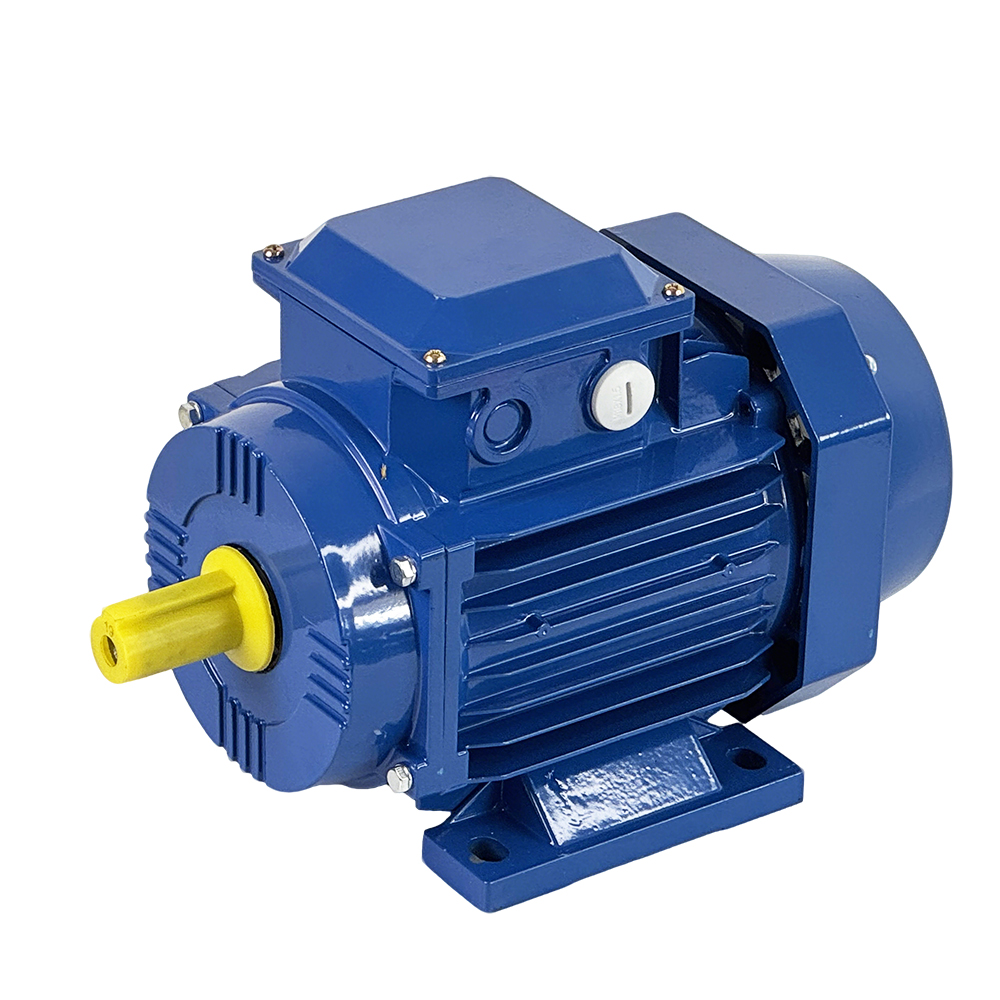

What Is an AC Motor

AC MOTORS(AC=Alternating current),also known as alternating current motors,ac motor applications range from industrial bulk power conversion from electrical to mechanical to household small power conversion.

An ac motor is an electric motor which converts ac into mechanical power.this mechanical energy is created from the force exerted by the rotating magnetic fields produced by the alternating current that flows through the motor’s cols.

By understanding how a motor works you can learn a lot about magnets, electromagnets and electricity in general. An electric motor uses magnets to create motion. If you have ever played with magnets, you know about the fundamental law of all magnets: Opposites attract and likes repel.

So, if you have two bar magnets with their ends marked "north" and "south," then the north end of one magnet will attract the south end of the other. On the other hand, the north end of one magnet will repel the north end of the other (and south will repel south). Inside an electric motor, these attracting and repelling forces create rotational motion.

Direct current (DC) motors and alternating current (AC) motors differ in that AC motors use alternating current instead of direct current for charging. Alternating current (AC) motors stand out for their ability to convert electrical energy into mechanical energy through the interaction of internal magnetic fields. Brushes and commutators, typically included in DC motors are not necessary for AC motors to accomplish this. As a result, AC motors are easier to build and frequently more reliable during extended periods of operation.

This mechanical energy is created from the force exerted by the rotating magnetic fields produced by the alternating current that flows through the motor’s coils.

The stator is the stationary part of the motor.and the rotor is the rotating part of the motor.an ac motor may be single phase or three phase.

The principle of electromagnetic induction determines the operation of alternating-current (AC) motors. According to this principle, a fluctuating magnetic field within the motor generates an electric current in the conductor that is present in the rotor, which is the part of the motor that is rotating. The alternating current (AC) in the stator, the stationary part of the motor, interacts with the induced magnetic field in the rotor to produce torque, which drives the rotor.

Generally speaking, alternating current (AC) motors can be divided into two categories: induction motors and synchronous motors. Induction motors, including squirrel-cage and wound-rotor types, are intrinsically capable of starting themselves because they operate at a frequency that is slightly lower than the supply frequency. When compared to asynchronous motors, synchronous motors operate at the supply frequency and require extra mechanisms in order to begin operation.

How does the ac motor work?

An electromagnet is the basis of an electric motor. Say that you created a simple electromagnet by wrapping 100 loops of wire around a nail and connecting it to a battery. The nail would become a magnet and have a north and south pole while the battery is connected.

Now say that you take your nail electromagnet, run an axle through the middle of it and suspend it in the middle of a horseshoe magnet as shown in the illustration. If you were to attach a battery to the electromagnet so that the north end of the nail appeared as shown, the basic law of magnetism tells you what would happen: The north end of the electromagnet would be repelled from the north end of the horseshoe magnet and attracted to the south end of the horseshoe magnet. The south end of the electromagnet would be repelled in a similar way. The nail would move half a turn and then stop in the position shown.

The key to an electric motor is to go one step further so that, at the moment that this half turn of motion completes, the field of the electromagnet flips. You flip the magnetic field by changing the direction of the electrons flowing in the wire, which means flipping the battery over. The flip causes the electromagnet to complete another half turn of motion. If the field of the electromagnet were flipped at precisely the right moment at the end of each half turn of motion, the electric motor would spin freely.

An ac motor consists of two main components:the stator and the rotor.the stator is the stationary part of the motor,consisting of several thin laminations wound with an insulated wire,forming the core.The stator is constructed with slots that hold the conductors,which carry the current.these conductors are insulated from each other to prevent short-circuiting.the number of slots and windings are configured to a specific pole count:the lower the pole count.

The rotor is connected to the shaft of the motor.the most common type of rotor used in an ac motor is the squirrel cage rotor,named after its resemblance to rodent exercise wheels.The rotor is balanced by bearings on the motor housing which surrounds the stator.typically,motor housing are a steel constructed heat sink that reduces heat generation in the laminated windings and protects the windings and orotr from being damaged.

AC motors run on alternating current power.Alternating current,or AC,periodically reverses direction.

Frequency is how fast the polarity changes from positive to negative.

Ac motors take alternating current and convert it into mechanical power through electromagnetic induction.

Inside the stator,there is a solid metal axle,a loop of wire,a coil,a squirrel cage made of metal bars and sme other freely rotating metal part that can conduct electricity.

A phase shift brings about the electromagnetic field of rotation.The rotor generates its own magnetic field through the windings arranged in it or,depending on the design.

We can make the current reverse every time the wire flips over,and that means the wire will keep rotating in the same direction for as long as the current keeps flowing.

Here's a typical, everyday AC induction motor with its case and rotor removed, showing the copper windings of the coils that make up the stator (the static, non-moving part of the motor). These coils are designed to produce a rotating magnetic field, which turns the rotor (the moving part of the motor) in the space between them.
