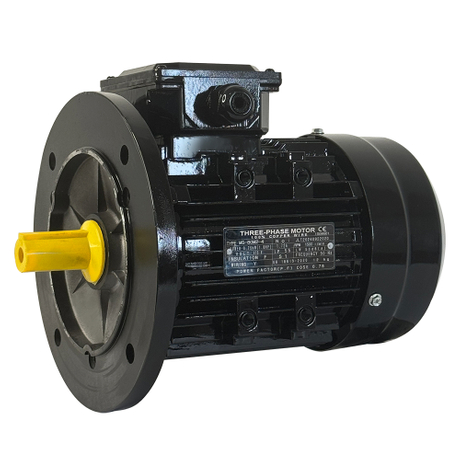

What Causes Batch-to-Batch Variation in MS Series Three-phase Motor?

Procuring asynchronous motors for bulk OEM applications requires strict predictability. A successful prototype does not guarantee stable mass production. Unchecked batch-to-batch variation introduces hidden operational expenses in maintenance, energy consumption, and end-user reliability. For procurement and engineering teams, the shift from sample validation to continuous supply often exposes critical gaps in a manufacturer's quality control. You will notice these structural flaws particularly in aluminum-housed units across multiple production runs. Understanding these discrepancies protects your engineering reputation and operational uptime. This guide dissects the technical root causes behind manufacturing batch variability. We provide a clear, actionable evaluation framework for auditing supplier consistency thoroughly. You will also learn exactly how to safeguard ongoing compliance with global energy efficiency mandates without relying solely on isolated prototype tests.

Key Takeaways

• Air Gap and Machining Tolerances: Slight deviations in the aluminum housing of an MS series motor directly impact concentricity, leading to vibration and phase current imbalance.

• Material Volatility: Fluctuations in silicon steel grade, copper purity, and die-cast rotor porosity are primary drivers of inconsistent electrical performance across batches.

• Efficiency Compliance Risk: Minor batch variations can push an IE2/IE3 motor out of its certified efficiency class, exposing buyers to regulatory and performance liabilities.

• Supplier Evaluation Shift: Assessing a manufacturer requires moving beyond prototype testing to auditing their Process Capability Index (Cpk) and continuous end-of-line testing protocols.

The Business Cost of Compromised Three Phase Motor Consistency

Minor manufacturing deviations routinely manifest as severe operational failures in the field. Industry experts observe how seemingly trivial electrical imbalances trigger cascading mechanical issues. A standard 2% voltage unbalance easily causes an 8% increase in overall operating temperature. Heat accelerates component degradation rapidly. Insulation systems break down prematurely under these conditions. Bearings lose lubrication viscosity faster than expected. Achieving true three phase motor consistency prevents these localized overheating events.

System integrators bear the heaviest burden when batches fluctuate. Integration bottlenecks emerge during final product assembly lines. Technicians spend countless hours troubleshooting unexpected vibration issues. Increased warranty claims erode profit margins steadily. Companies face the hidden burden of incoming quality control (IQC) rejections. Engineering teams waste valuable resources quarantining non-compliant units. They must negotiate replacements constantly instead of focusing on product development. Consistent supply chains eliminate these administrative headaches.

Regulatory and compliance exposure presents another massive risk for global buyers. Energy regulators impose strict efficiency mandates worldwide. Mass-produced batches sometimes fail to meet the nameplate efficiency of the initial prototype. This creates a severe "bait and switch" scenario. The deviation might occur intentionally through material cost-cutting. It often happens accidentally through poor process control. Regulators penalize non-compliant equipment heavily. Buyers face significant brand damage when their end-products fail independent energy audits.

Core Drivers of Inconsistency in MS Series Motor Production

Silicon Steel and Core Lamination Variances

Raw material degradation directly affects magnetic performance. Silicon steel sheets form the critical magnetic core. Different raw material batches possess varying levels of magnetic permeability. Lower permeability restricts magnetic flux flow. The system demands higher magnetizing current to compensate. This increases baseline energy consumption significantly. Subpar steel grades exhibit higher hysteresis losses. Factories must strictly monitor incoming steel coils to prevent core saturation issues.

Stamping and stacking flaws introduce further electrical irregularities. Dull stamping dies create microscopic burrs along lamination edges. These burrs bridge the insulation between individual steel sheets. The short circuits allow excessive eddy currents to circulate freely. Core stacking requires precise, uniform pressure. Inconsistent pressure leaves micro-voids inside the stator block. These physical defects alter thermal dissipation profiles completely. Localized hot spots develop inside the stator core.

Table 1: Common Manufacturing Deviations and Their Technical Impacts

Winding Resistance and Insulation Variations

Copper wire purity and gauge precision dictate phase resistance. Small deviations in wire diameter change the cross-sectional area. Impure copper elevates internal resistance further. These variations contribute heavily to current imbalance across the three phases. The electromagnetic field loses its crucial symmetry. This creates torque pulsation during normal operation. Manufacturers must source premium enameled wire to maintain strict resistance tolerances.

The debate between manual and automated winding reveals significant quality divides. Semi-automated winding processes carry inherent risks.

• Human operators apply inconsistent tension to copper coils.

• Slot fill factors vary wildly between individual units.

• End-turn lengths differ, altering total phase resistance.

• Manual insertion damages fragile slot insulation papers occasionally.

Fully automated winding eliminates these variables entirely. Robots pack the stator slots uniformly every time. Predictable slot fill ensures consistent thermal conductivity. The electromagnetic field remains perfectly balanced. Symmetrical windings generate smooth, continuous mechanical torque.

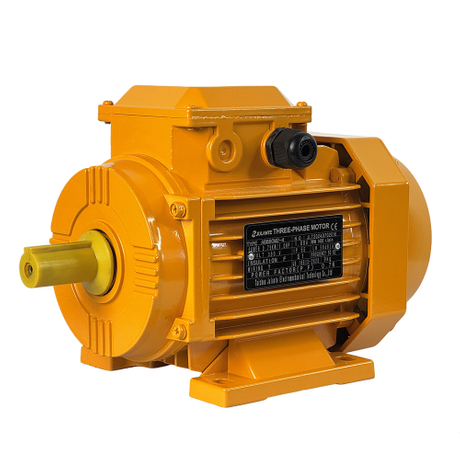

Aluminum Housing Machining (MS Series Specifics)

Thermal expansion poses unique challenges for the MS series motor. These units utilize lightweight aluminum shells. Aluminum possesses a significantly higher thermal expansion coefficient than cast iron. Improper machining introduces severe mechanical stresses. Inadequate aging of the die-cast metal leaves residual internal tension. The frame eventually warps under standard operational thermal stress. This microscopic distortion misaligns internal components over time.

Bearing seating tolerances determine rotor stability completely. Inconsistent end shield machining misaligns the bearings. This creates a non-uniform air gap between the stator and rotor. An uneven air gap acts as a primary cause of mechanical vibration. It generates severe magnetic pull imbalances. The magnetic field pulls the rotor off-center aggressively. The rotor rubbing against the stator causes catastrophic failure eventually.

Evaluating Suppliers for IE2/IE3 Motor Compliance and Stability

Auditing Process Capability (Cpk)

Passing a single prototype test proves very little about mass production. Evaluating a supplier requires moving beyond simple sample validation. You must audit their Process Capability Index (Cpk). This statistical metric measures manufacturing consistency accurately. A Cpk value of 1.33 represents the absolute minimum standard. A value of 1.67 or higher ensures production stays well within acceptable tolerance limits. You should demand Cpk data for critical dimensions like bearing journals and stator bores.

Raw material traceability separates elite manufacturers from average assemblers. You must assess the supplier's inbound quality control (IQC) protocols. Track how they inspect core components like copper wire and silicon steel. Some factories rely blindly on supplier certificates of analysis. Elite manufacturers perform independent verification in-house. They utilize spectroscopy to check copper purity. They test bearing vibration before assembly begins. Strict IQC prevents defective materials from entering the production line.

End-of-Line (EOL) Testing Protocols

Mandatory Factory Acceptance Tests (FAT) guarantee outgoing quality. Every single batch must undergo strict routine testing before shipping. Technicians must perform accurate no-load current measurements. Locked-rotor tests verify starting torque and current draw limits. Dielectric withstand (hipot) testing ensures absolute insulation integrity. Factories must conduct these tests under standardized environmental conditions. Temperature variations during testing skew resistance measurements heavily.

Data transparency builds long-term procurement trust. You must request raw EOL testing data for random batch samples. Do not rely entirely on generalized compliance certificates. Analyze the standard deviation across fifty units yourself. This rigorous approach protects your IE2/IE3 motor investments. Minor variations easily push an efficient design out of its certified class. A unit rated for 90% efficiency might drop to 88% due to poor assembly. Transparent data exposes these silent performance drops.

Mitigating Procurement Risk: Shortlisting Logic and Next Steps

Identifying red flags early prevents disastrous procurement decisions. High reliance on manual assembly for critical components signals danger. Manual winding lines cannot guarantee phase resistance symmetry consistently. Reluctance to share raw batch test data indicates hidden quality issues. Unexplained price fluctuations suggest volatile, spot-market raw material sourcing. Cheap copper and low-grade steel destroy electrical efficiency immediately. You should disqualify suppliers exhibiting these warning signs.

Trust signals help you build a reliable vendor shortlist. High automation in stator winding demonstrates real capital investment. In-house precision machining of aluminum frames controls critical dimensional tolerances. Transparent documentation of IEC and NEMA testing standards proves engineering competence. Trustworthy suppliers welcome third-party audits openly. They maintain detailed traceability records for every single production run.

Take concrete actions to secure your supply chain immediately. Follow this strict validation sequence:

1. Define acceptable variance thresholds clearly inside your procurement contract. Specify maximum allowable phase resistance deviation.

2. Request a pilot run specifically designed to test standard deviation. Order 50 to 100 units before committing to annual volumes.

3. Implement a stringent incoming inspection protocol. Test the first three commercial deliveries extensively upon arrival.

Conclusion

Securing reliable asynchronous units requires aggressive, continuous supplier validation. You must move past the initial prototype phase immediately. Prototype success never guarantees long-term manufacturing stability. Focus heavily on process capability indices and raw material traceability. Monitor how suppliers machine their aluminum frames to prevent thermal warping.

Take control of your quality assurance processes today. Demand raw end-of-line testing data from your current vendors. Audit their stator winding automation levels physically or via video inspection. Establish strict deviation thresholds in all future purchasing agreements. These proactive steps eliminate unexpected operational failures. You will protect your brand reputation and maintain strict energy compliance successfully.

FAQ

Q: What is an acceptable current unbalance in a new batch of MS series motors?

A: Industry standard dictates current unbalance should not exceed 5% at full load. However, tighter tolerances under 2-3% are expected for high-reliability applications. Anything above this threshold indicates poor winding symmetry or inconsistent air gaps. Excessive current unbalance generates excessive heat, degrading the internal insulation rapidly.

Q: How does batch variation affect an IE2/IE3 motor's lifespan?

A: Variations increase phase resistance or mechanical friction directly. This leads to localized overheating inside the stator. According to basic thermal principles, every 10°C rise above the rated operating temperature halves the insulation lifespan. Poor batch consistency guarantees premature bearing failure and catastrophic electrical shorts.

Q: Can a supplier's ISO 9001 certification guarantee three phase motor consistency?

A: No. ISO 9001 confirms a quality management system exists. It does not guarantee specific product tolerances or advanced manufacturing capabilities. Buyers must audit specific process capability data (Cpk) independently. You should always demand actual end-of-line test records to verify real-world electrical performance.

Q: Why is the MS series more susceptible to machining variations than cast iron motors?

A: Aluminum is much softer than cast iron. It also possesses a significantly higher coefficient of thermal expansion. If the machining process or temperature control isn't strictly regulated, the housing retains stress. The metal is highly prone to microscopic warping, which misaligns bearings and distorts the air gap.
