Pouring concrete looks deceptively simple until you strip away the forms to reveal catastrophic honeycombing. You need serious mechanical intervention to force trapped air out of your mix. The method you choose dictates whether your structure stands the test of time or crumbles under pressure.
Inadequate concrete consolidation leads directly to honeycombing, severe structural weaknesses, and massive rework expenses. Picking the wrong vibration method only exacerbates these risks, threatening both structural integrity and project timelines. Many site managers misunderstand how different motors interact with varying slumps and rebar densities.
We will unpack the critical differences defining an internal vs external vibrator motor so you avoid costly mistakes. You will learn exactly how to evaluate your mix design, assess formwork limitations, and match equipment to your job site realities. This guide delivers the technical clarity needed to specify the correct consolidation tools for your next pour.
Internal Vibrator Motors (Pokers/Immersion): Best suited for standard cast-in-place applications, offering direct energy transfer to the concrete with high mobility and lower initial setup costs.
External Vibrator Motors (Formwork/Surface): Essential for precast manufacturing, heavily congested rebar, and architectural concrete where immersion is impossible or risks damaging the finish.
Primary Differentiator: Internal vibrators require manual insertion and radius-of-action management; external vibrators require rigid, engineered formwork capable of withstanding sustained surface frequency.
Risk Mitigation: The choice often dictates the required formwork investment. External vibration will destroy standard formwork not rated for high-frequency dynamic loads.
Understanding the fundamental mechanics behind these two systems is crucial. They achieve the same goal through entirely different physical pathways. You must match the mechanism to the physical constraints of your construction site.

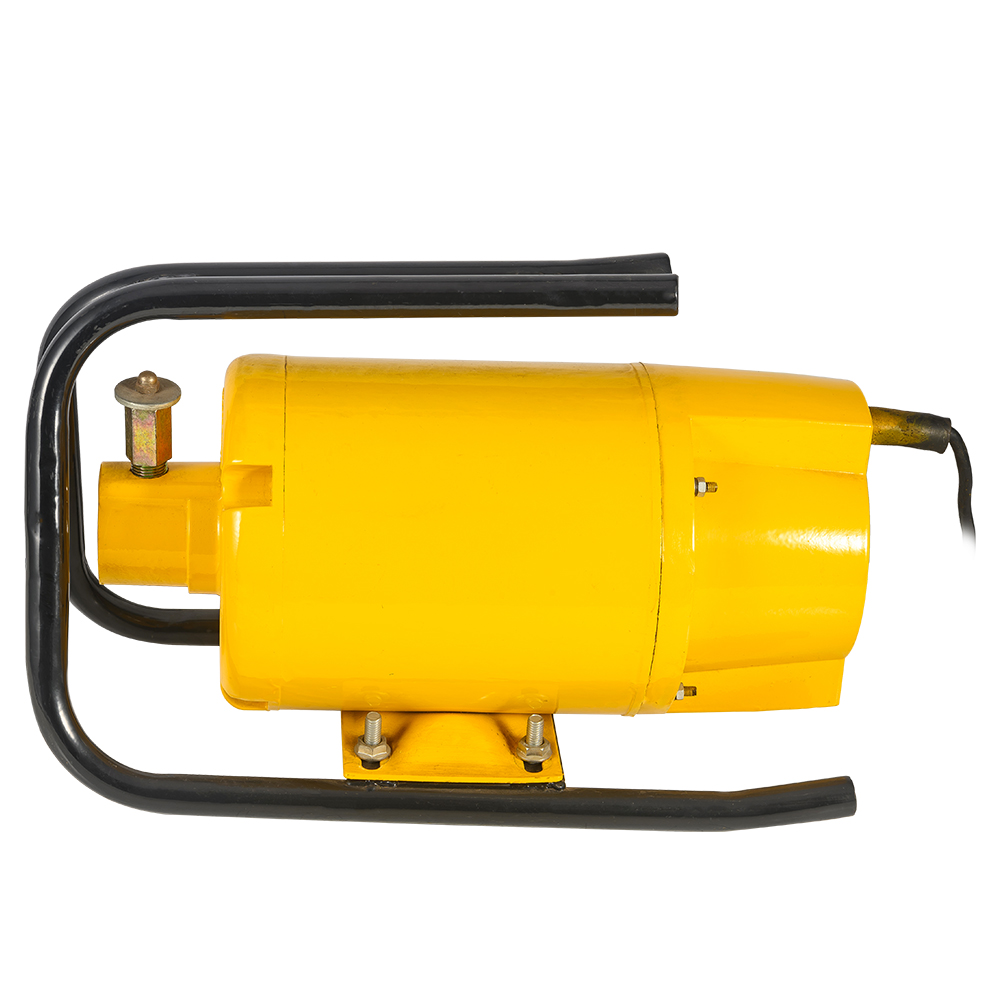

An Internal Vibrator Motor relies on direct immersion. Operators physically submerge the tool into wet concrete. This equipment consists of an oscillating eccentric weight housed inside a sealed steel tube. We commonly call this tube the poker head. A flexible shaft connects this head to a drive unit. The power source can be electric, gas-powered, or pneumatic.
This setup allows for direct energy transfer. Energy radiates outward from the vibrating poker head directly into the surrounding paste. The friction between aggregate particles drops instantly. Trapped air bubbles rise rapidly to the surface.
Operators evaluate these tools using three key metrics. Head diameter determines the overall volume displaced. Radius of action dictates how far the vibration travels laterally. Vibrations Per Minute (VPM) indicates the frequency. Smaller heads operate at higher frequencies. Larger heads use lower frequencies to move heavier aggregates.
An External Vibrator Motor never touches the wet concrete. Installers clamp or bolt these heavy-duty units directly onto the exterior formwork. Inside the motor housing, adjustable eccentric weights spin rapidly to generate intense centrifugal force.
Energy transfer happens indirectly. The motor vibrates the steel or timber formwork. The formwork then acts as a giant transmitter, pushing kinetic energy deep into the concrete. This indirect method fluidizes the entire batch uniformly without any invasive tools.
Engineers assess these motors using completely different metrics. Centrifugal force measures the raw impact energy delivered to the mold. Formwork resonance indicates how efficiently the mold transmits this energy. Frequency control allows operators to tune the vibration to match specific aggregate sizes.
You cannot select vibration equipment based solely on operator preference. Mix designs and structural geometries strictly dictate your choices. Let us examine the four primary dimensions governing this selection.
Internal vibrators perform exceptionally well in medium-to-high slump concrete. The mix is already somewhat fluid. The poker easily penetrates the surface and mobilizes the aggregate. However, operators face challenges when placing very stiff, low-slump mixes. A poker will struggle to fluidize stiff concrete without requiring hundreds of closely spaced insertion points. This drastically slows down production.
External methods provide the optimal solution for zero-slump and low-slump mixes. Precast facilities rely heavily on this technique. The motors deliver sustained, uniform vibration across broad surfaces. This continuous energy fluidizes incredibly stiff mixes efficiently. The rigid concrete yields to the constant mechanical resonance, filling every corner of the mold.
Internal consolidation is physically limited by rebar spacing. A poker must fit smoothly between reinforcement bars. It cannot get stuck. It must not alter the rebar positioning or damage the epoxy coatings. Field engineers often see operators struggling to navigate tight rebar cages, leading to unvibrated pockets of concrete.
External consolidation remains completely unaffected by internal congestion. The energy enters from the outside walls. It represents the ideal solution when dense reinforcement matrices make poker insertion physically impossible. The vibration easily penetrates past complex rebar tangles to ensure complete aggregate distribution.
Internal techniques offer excellent compatibility with standard formwork. Setup time remains minimal. Operator mobility is exceptionally high. You can pour standard residential foundations using basic plywood forms. The temporary pressure localized around the poker rarely threatens formwork integrity.
External applications require heavy-duty, reinforced steel or specialized timber formwork. Standard plywood forms will bow, leak grout, or completely shatter under extreme external vibration. Preparing for surface vibration requires significant engineering. Technicians must perform precise calculations for clamp placement. They often need to weld custom mounting brackets to the steel molds.
Internal tools may leave minor surface voids near the form edges. Operators call these bug holes. If a worker misjudges the radius of action, the vibration might not reach the very edge of the formwork. Air remains trapped against the wall, causing minor cosmetic defects.
External units produce superior, architectural-grade finishes. They vibrate the formwork boundary itself. This intense boundary vibration drives air bubbles away from the form surface inward. The result is a glass-smooth, void-free exterior face highly desired in visible architectural projects.
Table: Consolidation Evaluation Metrics
Evaluation Metric | Internal Vibration Method | External Vibration Method |
|---|---|---|
Optimal Concrete Slump | Medium to High Slump | Zero to Low Slump |
Rebar Compatibility | Requires wide clearance | Unaffected by congestion |
Formwork Demand | Standard plywood or timber | Engineered steel, heavy bracing |
Surface Quality | Acceptable (minor bug holes possible) | Architectural-grade (void-free) |
Matching the right tool to your specific job site prevents structural failures. Different construction scenarios demand unique mechanical approaches. Industry frameworks, such as American Concrete Institute (ACI) guidelines, emphasize selecting equipment based on physical access and finish requirements.
When to Specify an Internal Vibrator Motor:
Standard cast-in-place foundations, footings, and retaining walls.
Flatwork operations including commercial slabs and residential driveways.
Projects demanding high operator mobility across massive surface areas.
Structures containing standard, widely spaced rebar grids.
Pours where surface aesthetics are secondary to structural density.
When to Specify an External Vibrator Motor:
Precast concrete plants manufacturing pipes, highway barriers, and modular structural segments.
Architectural concrete walls requiring a flawless, smooth exterior finish.
Deep, narrow columns where drop-chutes and immersion vibrators cannot physically reach the bottom.
Highly congested walls loaded with heavy seismic reinforcement steel.
Tunnel linings, slip-form paving operations, and mass concrete dam constructions.
Every mechanical advantage carries specific operational risks. Field crews must recognize these dangers early. Mishandling vibration equipment routinely causes irreversible damage to freshly poured concrete.
Over-Vibration & Segregation: Both methods share a severe risk. They will separate aggregate from the paste if applied too long. Heavy stones sink to the bottom. Water and fine cement paste rise to the top. This creates weak, powdery surfaces. Internal vibration relies entirely on operator timing. A skilled operator limits insertions to 5-15 seconds. External vibration demands strict mathematical timing protocols. Over-vibrating a steel form will quickly ruin an entire precast segment.
Formwork Blowouts (External Risk): Applying high-frequency external motors to under-engineered forms causes catastrophic structural failure. The dynamic load is immense. The vibrations forcefully push the heavy fluid outward. Wet concrete bursts through weak plywood seams. You must perform rigorous load-bearing analysis prior to mounting any external motors.
Equipment Entrapment (Internal Risk): Operators face significant physical hazards inside dense rebar cages. Inserting a poker too deep into a fast-setting mix can be disastrous. Tangling the heavy vibrating head in tight reinforcement leads to permanent entrapment. Workers sometimes lose the motor head completely. It remains permanently entombed within the finished concrete wall.
Maintenance & Wear: Internal flexible shafts act as high-wear consumable components. The sharp bending and twisting cause friction heat. They require frequent lubrication and regular replacement. External motors endure severe self-inflicted G-forces. They literally beat themselves up. These units demand specialized heavy-duty bearings. Facility managers must enforce rigid, calendar-based maintenance schedules to prevent mid-pour motor burnouts.
Selecting the right motor requires a systematic approach. Do not guess. Follow a structured procurement process to protect your project integrity. Field engineers recommend evaluating four primary factors before ordering equipment.
Assess the Pour: Calculate the total anticipated volume. Determine the exact mix slump from your batch plant. Measure the absolute minimum clearance between your reinforcement bars. Your internal poker must be at least one inch narrower than the tightest rebar gap.
Verify Formwork Capacity: If you are considering an external setup, audit your existing formwork immediately. Check its structural integrity. Is it engineered specifically to handle sustained mechanical resonance? If you only have standard plywood, you must default to internal vibration.
Determine Power Supply: Evaluate your job site constraints. Pneumatic motors require massive, tow-behind air compressors. Electric units demand reliable, high-wattage portable generators. Gas-powered backpacks offer great mobility but introduce harmful exhaust fumes into enclosed trenches. Choose based on site ventilation and available utilities.
Match Frequency to Aggregate: Ensure the motor’s rated VPM aligns perfectly with your aggregate size. Smaller aggregates and thin pastes require higher frequencies to fluidize properly. Massive stones in heavy structural pours respond better to lower frequencies with higher physical amplitude. Check your mix design specifications first.
The decision between an internal and external vibrator motor is rarely a matter of personal preference. It is strictly dictated by mix design, rebar density, and formwork capacity. Ignoring these physical constraints guarantees structural defects and expensive project delays.
Use internal vibrators for standard, easily accessible cast-in-place jobs. They provide incredible versatility, easy mobility, and manageable setup costs. Train your operators to manage their insertion timing carefully to avoid segregation.
Transition to external vibrators for specialized operations. Precast facilities, architectural facades, and heavily reinforced geometries demand external solutions. While they require significant upfront engineering and robust steel formwork, they easily conquer situations where immersion tools physically fail.
A: Yes. In highly complex structures, crews often combine them. External vibrators treat the outer walls to achieve a flawless architectural finish. Meanwhile, operators use internal vibrators to consolidate the massive central core. However, this dual approach requires strict supervisor oversight to prevent localized over-vibration and segregation.
A: Generally, yes. Energy must pass through the thick formwork barrier before reaching the wet concrete. This indirect transfer causes energy loss. Therefore, external motors require significantly higher output capacities and heavier mounting brackets to achieve the same consolidation as direct-contact pokers.
A: Look at your rebar plans. The poker head diameter must be large enough to consolidate the volume efficiently. However, it must remain small enough to clear the narrowest gap between your reinforcing steel bars by at least one full inch. This prevents entrapment.
A: Standard plywood and basic timber bracing will degrade rapidly under the intense frequency. The vibration causes the wood to flex violently. It pulls out nails and screws almost instantly. This leads to severe grout leakage, warped concrete dimensions, or a complete blowout of the wet pour.
