How Do You Diagnose Excessive Vibration in an Induction Motor?

Unplanned induction motor failure halts production lines instantly. It severely inflates maintenance budgets and destroys daily delivery schedules. You must treat this physical shaking as a lagging indicator. It signals existing mechanical or electrical degradation deep inside your equipment. By the time you notice excessive movement, internal machine damage has already started. Relying solely on human senses to detect these issues remains extremely dangerous. Modern machinery operates at high speeds under immense industrial stress. Catching microscopic defects requires structured methodologies and highly reliable tools.

This article provides a systematic diagnostic framework for maintenance professionals. We will help you identify hidden root causes effectively. You will learn how to evaluate various condition monitoring solutions for your specific environment. We aim to guide your data-backed maintenance or replacement decisions seamlessly. Ultimately, you need actionable intelligence to prevent catastrophic operational stops. You will understand exactly how to isolate complex faults accurately. This proactive strategy keeps your industrial facility running efficiently and predictably.

Key Takeaways

• Root Cause Isolation: Effective diagnosis strictly separates mechanical faults (e.g., bearing wear, misalignment) from electrical/electromagnetic anomalies.

• Vibration Analysis ROI: Moving from reactive fixes to continuous condition monitoring reduces unplanned downtime and extends motor lifecycle.

• Evaluation Criteria: Choosing the right diagnostic approach depends on motor criticality, operating environment, and required measurement resolution.

• Implementation Reality: Accurate diagnosis requires precise sensor placement, correct baseline data, and adherence to ISO vibration standards to avoid false positives.

Framing the Problem: The True Cost of Induction Motor Vibration

Excessive machine movement destroys profitability across multiple operational levels. It accelerates component wear at an alarming rate. Bearings suffer microscopic flaking long before they fail completely. Seals degrade rapidly, allowing contaminants into sensitive internal chambers. This degradation forces the machine to work much harder. Inefficiencies drive up energy consumption noticeably over time. The motor draws more current just to maintain baseline rotational speeds. You face higher monthly power bills as a direct result. Ignoring these early warning signs eventually risks catastrophic equipment failure. Catastrophic failures destroy the motor and often damage attached driven equipment.

Successful induction motor vibration diagnostics have very clear success criteria. You want to identify the specific fault without ordering unnecessary motor teardowns. Teardowns waste expensive labor hours and introduce new reassembly risks. A successful intervention minimizes production interruption substantially. You catch the defect early enough to schedule repairs during planned outages. You avoid emergency weekend overtime and rushed parts shipping. Success means transitioning from putting out fires to orchestrating controlled maintenance.

Establishing a solid baseline is absolutely imperative. You cannot diagnose an evolving problem without knowing normal machine behavior first. You must record a healthy vibration signature under normal load conditions. Every single machine possesses a unique mechanical fingerprint. Similar models will vibrate differently based on their mounting structures. You need this historical data to spot subtle upward trends accurately. Without a proper baseline, you are simply guessing at severity levels.

Mechanical vs. Electrical: Isolating the Root Cause

The "Power-Off" test serves as your critical first diagnostic step. It provides immediate clarity when troubleshooting complex machinery. You must cut power to the motor while it is currently running. Observe the machine's behavior the exact second power drops. If the physical shaking stops instantly, suspect electrical or electromagnetic anomalies. The magnetic field collapses immediately, removing the exciting force. If the machine coasts down shaking gradually, you face mechanical faults. The rotating mass continues to spin and vibrate mechanically.

Follow these specific steps for a safe and effective power-off test:

1. Run the machinery at normal operating temperatures and full load.

2. Observe and record the current overall vibration amplitude clearly.

3. Sever the electrical power supply abruptly using the safety disconnect.

4. Watch the immediate physical response closely as rotation slows down.

Mechanical faults represent the most common culprits in industrial settings. Unbalance occurs when heavy spots develop on the spinning rotor. Shaft misalignment introduces severe stress across the coupling into the bearings. Mechanical looseness happens when mounting bolts back out slowly over time. Bearing degradation produces high-frequency noise long before low-frequency shaking begins. You must investigate these mechanical categories thoroughly during routine inspections.

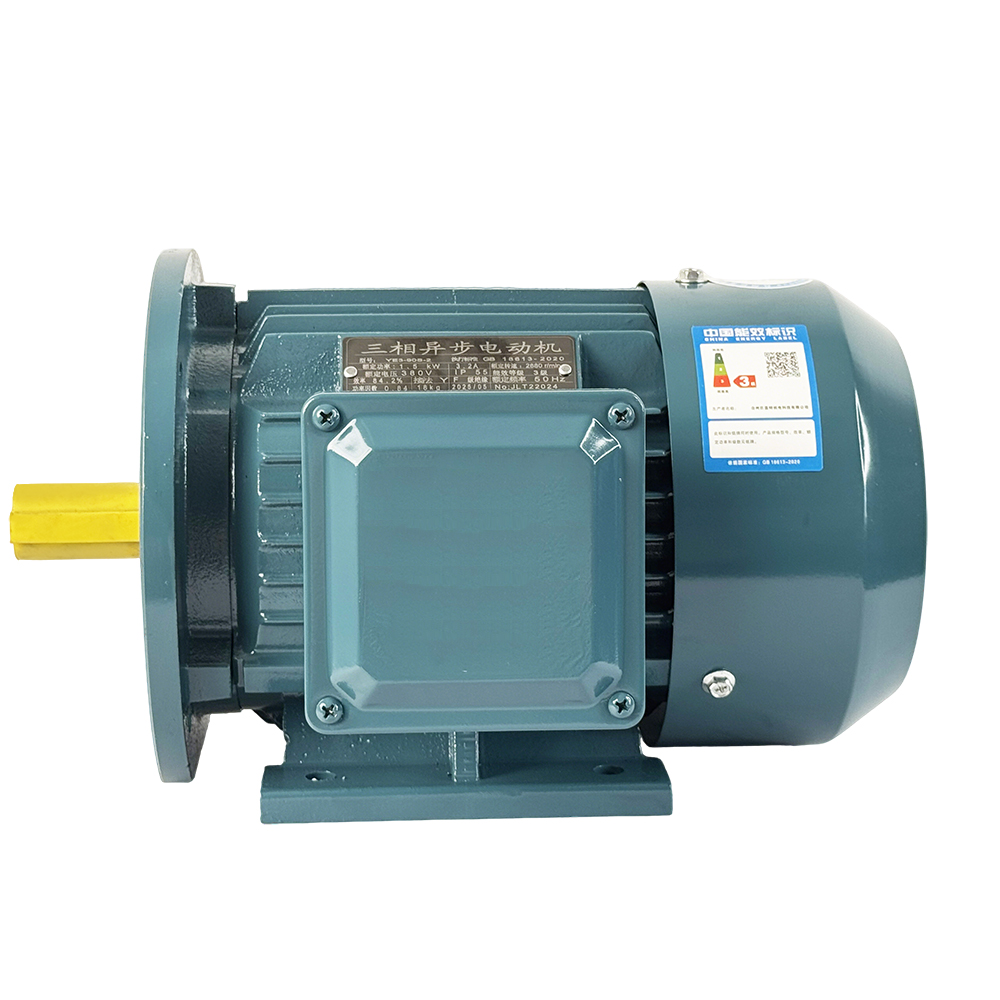

Electrical and electromagnetic anomalies require a different diagnostic approach entirely. A Three Phase Induction Motor faces unique challenges under heavy load. You should look for broken or cracked rotor bars. Check carefully for stator eccentricity where the rotor sits off-center. Phase imbalance creates severe pulsing and uneven magnetic pull across the air gap. These electrical issues generate specific frequencies tied directly to the line frequency.

You must maintain a skeptical lens during your diagnostic process. Mechanical and electrical issues often compound upon one another silently. A mechanically misaligned shaft creates an uneven air gap internally. This uneven gap then generates strong electromagnetic pulling forces. The electrical pull causes further mechanical bending and bearing stress. They feed off each other in a destructive loop.

Evaluating Diagnostic Approaches and Condition Monitoring Systems

You must choose between two primary solution categories for diagnostics. Walk-around diagnostic routes utilize portable handheld analyzers. Technicians collect data manually on a monthly or quarterly schedule. Continuous online condition monitoring systems deploy permanent wireless IoT sensors. These sensors transmit critical data continuously to a centralized dashboard. Walk-around routes cost less upfront but miss rapidly developing faults. Online systems require higher capital investment but provide continuous asset protection.

You need to map technical system features directly to business outcomes. Advanced hardware capabilities mean nothing if they fail to drive results. High-frequency resolution allows you to detect microscopic bearing defects early. Triaxial measurement captures motion across three separate dimensional axes simultaneously. This full motion capture prevents you from missing directional looseness or soft foot.

Scalability and software integration dictate long-term program success. Assess how easily a new diagnostic tool integrates into your existing architecture. You want the data flowing directly into your CMMS platform. Automatic work order generation saves immense administrative time. Integration into SCADA systems allows operators to see real-time equipment health. Siloed diagnostic data severely limits your maintenance team's overall effectiveness.

Special Applications: Diagnostics for High-Stress Motors

Some industrial machines shake violently on purpose by design. You must diagnose equipment where severe movement is a functional requirement. A Concrete Vibrator Motor falls firmly into this unique category. It behaves completely differently than standard smooth-running industrial pumps or fans. You must differentiate between intentional functional movement and parasitic destructive shaking. Parasitic shaking points to internal bearing collapse or housing fatigue.

Threshold adjustments become absolutely crucial in these environments. High-impact applications generate intense baseline background noise constantly. You must adjust software alarm thresholds upward to avoid false alarms. Standard ISO limits will trigger continuous false warnings on vibrating screens. Frequency spectrum analysis requires distinct high-pass filtering here. You filter out the intentional primary shaking to see the subtle bearing frequencies.

Heavy-duty applications demand incredibly tough sensor hardware. Construction, quarrying, and mining environments destroy standard commercial diagnostic tools quickly. You must outline specific ruggedization standards required for deployed sensors. Look for high IP ratings to block ingress from fine concrete dust. Stainless steel housings resist corrosive chemical exposure effectively. Robust cabling prevents accidental severing from falling debris or moving equipment.

Implementation Realities and Diagnostic Pitfalls

Sensor misplacement completely ruins your data collection efforts. Mounting accelerometers on thin cooling fins distorts your readings drastically. The fins amplify specific frequencies and mask the true bearing signals. You must always mount sensors on solid, rigid bearing housings directly. Shorter transmission paths from the bearing to the sensor yield cleaner data. Never mount sensors on flexible fan covers or thin sheet metal guards.

False diagnostics happen frequently in crowded plant environments. Background noise from adjacent machinery easily mimics motor failure. Industry professionals commonly call this the "cross-talk" problem. Heavy stamping presses transmit shockwaves through the solid concrete floor. Your sensors might pick up these external shockwaves inadvertently. You must analyze the frequency spectrum to separate external noise from internal faults.

Watch out for these common implementation mistakes:

• Failing to account for structural resonance in the primary mounting base.

• Ignoring critical baseline changes caused by seasonal ambient temperature shifts.

• Using cheap magnetic mounts on heavily painted, curved, or dirty surfaces.

• Skipping routine calibration checks on portable handheld vibration analyzers.

Calibration and compliance matter deeply for reliable trending. Use recently calibrated equipment consistently across all your routes. Uncalibrated sensors drift over time and provide false severity readings. Adhere closely to standard severity charts for baseline evaluations. ISO 10816 and ISO 20816 provide excellent compliance frameworks for industrial rotating equipment. They establish universally accepted boundaries for safe, restricted, and dangerous operation zones.

Next Steps: Shortlisting Diagnostic Solutions and Services

You must decide between building an in-house team or outsourcing. Investing in internal training requires significant time and upfront capital. Hiring third-party reliability testing laboratories provides immediate access to seasoned experts. You should evaluate your total critical asset count before making this decision. Facilities containing thousands of motors usually benefit from an internal reliability team. Smaller facilities often find outsourced monthly analysis much more cost-effective.

Vendor evaluation dimensions require careful scrutiny before purchasing. Assess the specific frequency range of the diagnostic hardware carefully. Ensure the sensors can capture both low-frequency unbalance and high-frequency friction. Verify actual battery life for wireless sensors under real-world field conditions. Demand complete software analytics transparency from the vendor. Avoid closed-loop systems refusing to share raw data with your other tools.

We recommend starting with a formal criticality assessment immediately. Rank all facility equipment based on operational importance and failure consequences. Prioritize your top-tier motors driving the most vital production processes. Deploy advanced monitoring solutions on these specific assets first. Proving success on critical assets builds momentum for plant-wide expansion later. Actionable advice always starts with protecting the most valuable bottlenecks.

Conclusion

Diagnosing excessive machine movement relies on a structured process of elimination. It never relies on simple guesswork or intuition. You must systematically separate mechanical faults from electrical anomalies using proven methods. Precise sensor placement and proper baseline data guarantee accurate evaluations.

Investing in reliable diagnostic frameworks protects your most expensive capital assets. This proactive approach ensures long-term operational predictability across the plant floor. It shifts your culture from reactive firefighting to precision maintenance.

We urge you to audit your current equipment baselines today. Consult with a certified reliability specialist to evaluate your top-tier assets. Take immediate action before subtle shaking turns into catastrophic downtime.

FAQ

Q: What are the acceptable vibration limits for an induction motor?

A: Acceptable limits depend heavily on motor size and mounting rigidity. ISO 10816 and ISO 20816 standards define these boundaries clearly. For medium-sized machines on rigid foundations, anything below 2.8 mm/s RMS is generally acceptable. Values exceeding 7.1 mm/s RMS usually indicate dangerous operational conditions requiring immediate attention.

Q: How do you differentiate between bearing wear and rotor unbalance in a vibration spectrum?

A: Rotor unbalance displays prominently as a single high peak exactly at 1X RPM. Bearing wear produces high-frequency, non-synchronous peaks across the spectrum. You will often see a raised noise floor in the higher frequency bands. Bearing defects generate microscopic impacts unlike the smooth sine wave of unbalance.

Q: Can variable frequency drives (VFDs) cause excessive motor vibration?

A: Yes, VFDs frequently induce severe electrical and mechanical issues. They generate high-frequency electrical harmonics causing torque pulsations. These pulsations can easily trigger mechanical resonance in the mounting structure. VFDs also cause bearing fluting by discharging stray voltages directly through the lubricated bearing elements.

Q: How often should routine vibration analysis be performed?

A: You should base your frequency on equipment criticality and operating hours. Highly critical, continuously running machines require 24/7 continuous online monitoring. Semi-critical equipment usually requires monthly walk-around manual analysis. Balance-of-plant machinery often undergoes quarterly checks to maintain a safe operational baseline.
