Views: 0 Author: Site Editor Publish Time: 2026-09-16 Origin: Site
Three phase motors are used almost everywhere in industry.
Pumps, air compressors, conveyors, fans, machine tools and production equipment often rely on them. If a factory already has three phase electricity available, this type of motor is usually one of the first options considered for larger or continuously operated equipment.
When customers contact us, however, the enquiry sometimes starts with only one piece of information:
“I need a 5.5 kW three phase motor.”
That tells us the required power, but not enough to select the motor.
We still need to know the voltage and frequency. We need the required speed. We need to know what the motor will drive and, for a replacement, whether the frame, mounting and shaft need to match an existing machine.
A 5.5 kW motor for a centrifugal pump and a 5.5 kW motor for another machine may carry the same power rating, but that does not automatically make them interchangeable.
So before choosing a model or motor series, it helps to understand what a three phase motor actually is, how it works and which specifications really matter.

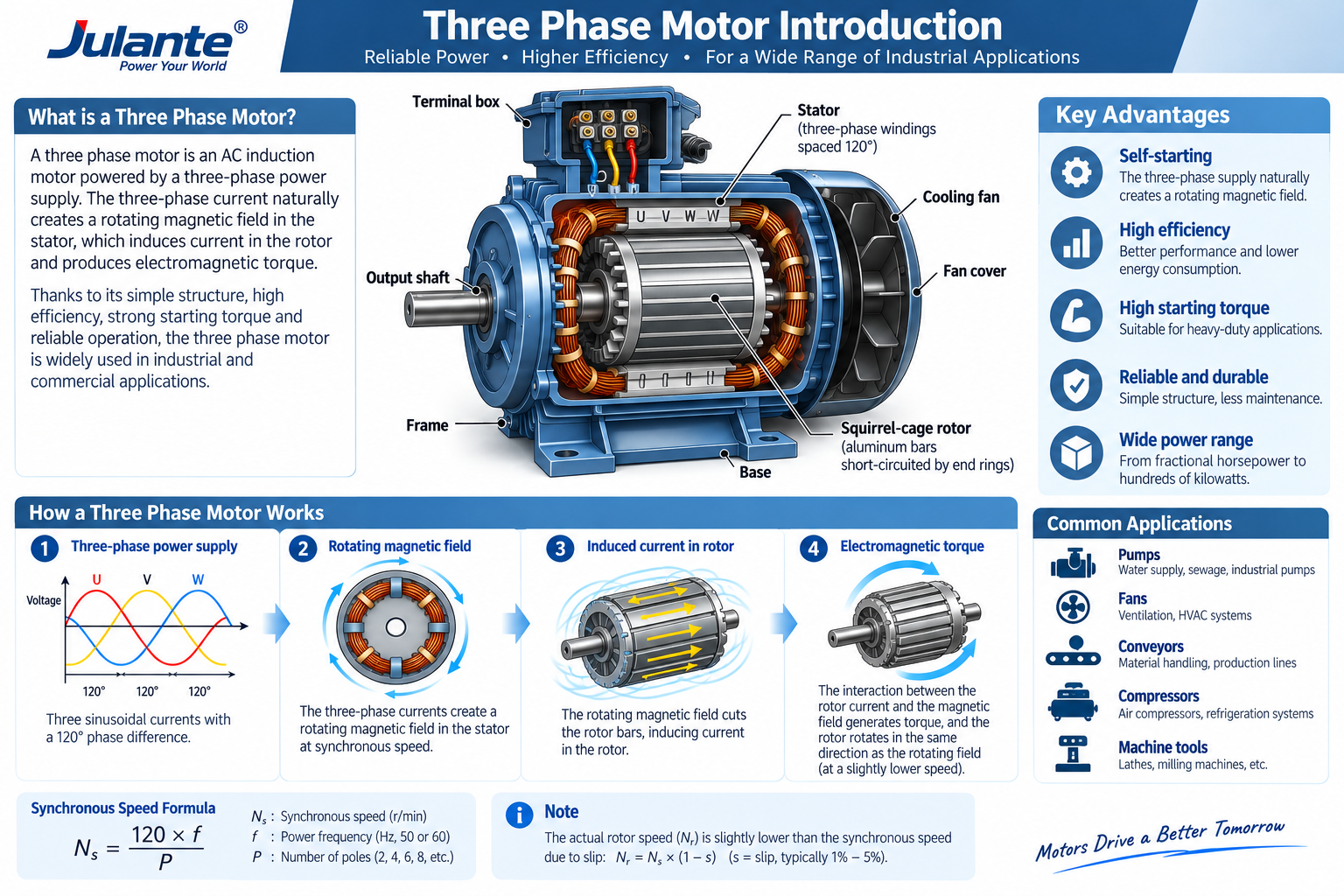

A three phase motor is an AC electric motor designed to operate from a three phase electrical supply.
If you look at the nameplate of an industrial motor, you may see 3 PH together with information such as voltage, frequency, current, power and rated speed.
What makes three phase power particularly useful for motors is what happens inside the stator.
The three phase currents are electrically separated by 120 degrees. As current flows through the stator windings, the three phases work together to create a magnetic field that continuously rotates around the stator.
The rotor sits inside this rotating field.
In a typical three phase induction motor, the rotating magnetic field induces current in the rotor. The interaction between the stator field and rotor current produces torque, causing the rotor and shaft to turn.
This is also one of the important differences between a three phase motor and a single phase motor. A conventional three phase induction motor can develop starting torque from the rotating magnetic field created by the three phase supply, without the same capacitor starting arrangement commonly found on many single phase motors.
If you are comparing the two types for a particular machine, our Single Phase Motor vs Three Phase Motor guide looks at the differences in power supply, starting, efficiency and applications in more detail.
The basic operating principle is electromagnetic induction.
Inside the motor, the stator contains three sets of windings. When connected to three phase AC power, these windings create a rotating magnetic field.
That field moves around the stator at what is known as synchronous speed.
The speed depends mainly on two things:
Supply frequency
Number of motor poles
The rotor follows the rotating magnetic field, but in an induction motor it does not quite reach the same speed.
This small difference in speed is called slip.
For example, a four-pole motor supplied at 50Hz has a synchronous speed of 1500 RPM. The rated speed shown on an actual induction motor nameplate will normally be somewhat lower.
This sometimes causes confusion when people replace an old motor.
A buyer may ask for a “1500 RPM motor” while the old motor nameplate shows something like 1450 RPM. That difference is normal for an induction motor and does not necessarily indicate a problem.
The important point for replacement work is to compare the actual rated motor speed rather than relying only on the theoretical synchronous speed.
A typical three phase induction motor is inherently self-starting because the three phase supply naturally produces a rotating magnetic field.
This is different from a conventional single phase induction motor.
With a single phase supply, the motor normally needs an additional starting arrangement to develop starting torque. Depending on the design, that may involve an auxiliary winding and capacitor.
A three phase induction motor does not normally need this type of capacitor starting circuit.
That does not mean motor starting can simply be ignored.
As the motor becomes larger, or when the driven machine has a demanding starting load, the way the motor is started becomes an important part of the system.
For a relatively small motor and a suitable electrical system, direct-on-line starting may be perfectly normal.
The motor receives full line voltage when it starts.
The arrangement is straightforward, but starting current can be high compared with normal running current.
For other applications, the electrical system may use a star-delta starter.
The motor starts in star and later changes to delta for normal operation. This can reduce starting current, but it also reduces starting torque.
That second point is important.
Star-delta starting should not be selected only because someone wants lower starting current. The machine still needs enough torque to accelerate properly.
A soft starter can be used when smoother acceleration is required. By controlling the voltage during startup, it can reduce some of the electrical and mechanical stress associated with an abrupt start.
Then there is the variable frequency drive, usually called a VFD.
A VFD controls frequency and voltage supplied to the motor. This makes it possible to control motor speed and acceleration rather than simply switching the motor on at full supply frequency.
Pumps, fans, conveyors and process machinery are common applications where VFD control may be useful.
When a customer tells us that the machine will operate with a VFD, we prefer to know this before the motor specification is finalized.
It is part of the application, not an afterthought.
Open the terminal box of many three phase motors and you may find six winding terminals.
This allows the windings to be connected in star (Y) or delta (Δ) where the motor design permits it.
But seeing six terminals does not mean you should simply choose whichever connection you prefer.
The correct connection depends on the motor winding rating and the actual line voltage.
The motor nameplate and connection diagram should always be checked before wiring.
For example, a motor may show two voltage ratings together with the appropriate star and delta symbols. Those markings tell you how the windings are intended to be connected at the specified supply voltage.
An incorrect connection can lead to poor torque, excessive current, overheating or motor damage.
This is why the actual electrical supply should always be included when ordering a three phase motor.
“Three phase” alone is not enough.
Voltage is one of the first details we confirm for export orders.
Three phase electrical systems are not identical in every market, and motor requirements may include voltages such as:
220V, 380V, 400V, 415V or 440V, depending on the application and local electrical system.
If a customer tells us:
“I need a 7.5 kW three phase motor.”
we still have several questions.
Compare that with:
“I need a 7.5 kW, 400V, 50Hz, 4-pole three phase motor for a centrifugal pump.”
The second enquiry gives us much more useful information.
For OEM equipment that will be exported, it is particularly important to confirm the electrical requirements of the destination market before production.
We do not recommend choosing motor voltage simply from an assumption about the country. The actual supply at the installation should be confirmed.
Frequency affects motor speed.
The synchronous speed of an AC motor can be calculated using:
Ns = 120 × f / P
Where:
Ns = synchronous speed in RPM
f = supply frequency in Hz
P = number of poles
Take a four-pole motor as an example.
At 50Hz, synchronous speed is 1500 RPM.
At 60Hz, it becomes 1800 RPM.
An induction motor normally operates somewhat below these speeds because of slip.
This is why changing frequency should not be treated as a minor detail.
If the motor drives a pump, fan or another speed-sensitive machine, changing motor speed can also change the way the driven equipment performs.
When somebody asks whether a 50Hz motor can be used on 60Hz, we would rather look at the motor voltage, design and actual application before giving an answer.
The motor is only one part of the system.
Power is usually one of the first specifications buyers look at.
Speed is just as important.
At 50Hz, the theoretical synchronous speeds are:
Motor Poles | Synchronous Speed |
|---|---|
2 Pole | 3000 RPM |
4 Pole | 1500 RPM |
6 Pole | 1000 RPM |
8 Pole | 750 RPM |
At 60Hz, the corresponding synchronous speeds are:
Motor Poles | Synchronous Speed |
|---|---|
2 Pole | 3600 RPM |
4 Pole | 1800 RPM |
6 Pole | 1200 RPM |
8 Pole | 900 RPM |
Actual induction motor speed is normally slightly lower.
This becomes especially important when replacing an existing motor.
A 4 kW 2-pole motor and a 4 kW 4-pole motor have the same rated output power, but they do not drive a machine at the same speed.
So matching kW or HP alone is not enough.
If the old motor is still available, check its nameplate before ordering the replacement.
Three phase motors can achieve high efficiency and are widely used in industrial applications where motors operate for long periods.
But three phase is not an efficiency rating by itself.
Two motors with the same output power can still have different efficiencies.
When energy consumption matters, we look at the actual motor efficiency, expected load and operating hours.
Motor loading is especially easy to overlook.
Installing a much larger motor than the machine needs is not automatically a better or more energy-efficient solution.
For equipment running only occasionally, a small efficiency difference may have limited effect on total operating cost.
For a production machine running ten or twelve hours every day, the calculation changes. Over several years, motor efficiency can become much more important than a small difference in the original purchase price.
This is why efficiency should be considered together with the real duty of the machine.
Not automatically.
This is a common misunderstanding.
Energy consumption depends on how much mechanical output the machine requires, the efficiency of the motor, its load and how long it operates.
A motor does not use less electricity simply because it is three phase.
Where three phase motors often make practical sense is in factories where three phase power is already available, the required motor power is relatively high, or the machine operates for long periods.
Now consider a small pump at a site with only single phase electricity.
Installing additional electrical equipment just to use a three phase motor may add complexity without providing a useful advantage.
The correct comparison has to include the application as well as the motor.
For a full side-by-side comparison of single phase vs three phase motors, including starting characteristics, efficiency, power supply and typical applications, see our detailed comparison guide.
Pumps are one of the most familiar applications.
Industrial water pumps, centrifugal pumps, irrigation systems, circulation pumps and process equipment commonly use three phase motors.
But “pump motor” still does not tell us everything.
We want to know the required power and speed, voltage and frequency, operating hours and whether the system uses a VFD.
Air compressors bring another consideration: starting conditions.
A compressor can place a significant demand on the motor during startup. That is why the motor power alone does not always tell the whole story.
Conveyors raise a different question.
Does the conveyor normally start empty, or can it start with material already on the belt?
That can affect the starting requirements.
Fans and blowers are also common applications, particularly in industrial ventilation and cooling systems. Where airflow needs to change during operation, speed control may become part of the design.
Machine tools and production equipment add another issue: mechanical compatibility.
The electrical specification can be correct, but the motor still needs to physically fit the machine.
This is why:
“I need a 7.5 kW three phase motor.”
is a useful starting point, but not a complete motor specification.
Before removing the old motor, take a clear photo of the nameplate.
It sounds obvious, but it can save a surprising amount of time.
The nameplate may tell you:
Rated power
Voltage
Frequency
Current
Rated speed
Efficiency
Power factor
Connection
Insulation class
Protection rating
Duty
Then take a few photos of the complete motor, mounting position, shaft and terminal box.
If the new motor needs to fit directly into the existing machine, measure the important mechanical dimensions as well.
We sometimes receive enquiries saying:
“I need exactly the same 5.5 kW motor.”
But the same power does not necessarily mean the same frame, shaft, speed or mounting.
For replacement projects, a nameplate photo plus motor photos and dimensions can be much more useful than a long description.
The easiest place to start is not the motor catalog.
Start with the machine.
What will the motor drive?
A centrifugal pump, compressor, conveyor, fan, grinder or another type of equipment?
Then confirm the basic electrical specification:
Power + Voltage + Frequency + Speed
After that, look at the starting method and actual operating conditions.
Does the machine start under load?
Will it use a VFD?
How many hours will it run each day?
Will the motor operate indoors or outdoors?
Is there significant dust, moisture or high ambient temperature?
For replacement or OEM projects, mechanical dimensions become equally important:
Frame size
Foot or flange mounting
Shaft diameter
Shaft length
Keyway
Overall dimensions
A motor can be electrically correct and still be impossible to install on the machine.
A short but complete enquiry is usually better than a long message with important specifications missing.
Instead of:
“Please quote three phase motor.”
or even:
“Please quote 7.5 kW motor.”
something like this gives the manufacturer a much better starting point:
Application: Centrifugal pump
Motor: Three phase induction motor
Power: 7.5 kW
Voltage: 400V
Frequency: 50Hz
Poles: 4
Mounting: B3
Quantity: 100 pcs
For a replacement motor, add the old nameplate and dimensions.
For an OEM project, drawings are even better.
And if you do not know one of the specifications, say so.
It is much easier to clarify a missing detail before production than to solve a compatibility problem after the motor has arrived.
At Taizhou Julante Electromechanical Technology Co., Ltd., we manufacture several series of three phase motors, including YX3, Y3, Y2, YD, YT and MS series.
Customers sometimes come to us with a series number already in mind.
For a replacement project, that information can be useful.
For a new machine, however, we prefer to start with the application and specification.
For example:
“7.5 kW, 400V/50Hz, 4-pole, B3 mounting, for a centrifugal pump.”
tells us much more about the actual requirement than simply:
“I need a YX3 motor.”
Once the application, electrical specification and mechanical requirements are clear, it becomes much easier to evaluate the appropriate motor configuration.
Julante has more than 20 years of experience in electromechanical manufacturing. Our motor range covers both single phase motors and three phase motors, with an annual motor production capacity of approximately 500,000 units.
Our products are supplied to customers in more than 20 countries and regions.
For OEM and bulk orders, customers can provide the required application, power, voltage, frequency, speed and mechanical dimensions before production so that the motor configuration can be evaluated against the actual equipment requirements.
If a factory already has three phase power and the machine has a larger load or operates for long periods, a three phase motor is often a natural option to consider.
If the equipment is smaller and only single phase electricity is available, a single phase motor may be the simpler solution.
Neither choice should be made from the number of phases alone.
Start with a few practical questions:
What electrical supply is actually available?
What machine will the motor drive?
How much power does it require?
What happens when the machine starts?
How many hours will the motor operate?
Once those questions are answered, the choice becomes much clearer.
If you are deciding between the two, our Single Phase Motor vs Three Phase Motor comparison explains the differences in starting, efficiency, power, cost and applications side by side.
A three phase motor is an AC electric motor designed to operate from a three phase power supply. In a typical three phase induction motor, the three phase currents create a rotating magnetic field in the stator, which produces the torque needed to turn the rotor.
Three phase current flows through the stator windings and creates a rotating magnetic field. In an induction motor, this field induces current in the rotor. The interaction between the magnetic field and rotor current produces torque.
They are well suited to a wide range of industrial power requirements and are commonly used for pumps, compressors, conveyors, fans, machine tools and production equipment.
A typical three phase induction motor does not require the starting capacitor arrangement commonly used by many single phase motors. The three phase supply naturally creates a rotating magnetic field.
There is no single voltage for every three phase motor. Depending on the electrical system and motor design, common requirements can include 220V, 380V, 400V, 415V and 440V.
Star and delta are different ways of connecting the three motor windings. The correct connection depends on the winding rating and supply voltage, so the motor nameplate and wiring diagram should always be checked.
A standard three phase motor should not simply be connected directly to a single phase supply. Depending on the application, a properly selected VFD or phase conversion solution may sometimes be used.
In many applications, yes. VFDs are commonly used to control motor speed and acceleration, but the motor, VFD, supply voltage, required speed range and driven equipment should be considered together.
Three phase motors are widely used in higher-power and continuous industrial applications, but phase alone does not determine efficiency. The actual motor efficiency, load and operating conditions should be compared.
Neither is the right choice for every application. Three phase motors are commonly used for larger industrial loads where three phase electricity is available, while single phase motors are often more practical for smaller equipment where only single phase electricity is available.
A three phase motor is not difficult to understand, but selecting the right one involves more than finding the correct kW rating.
Start with the machine the motor needs to drive.
Then confirm:
Power, voltage, frequency, speed, starting method, mounting and shaft dimensions.
If you are replacing an existing motor, photograph the old nameplate before removing it.
If you are developing new equipment, send the motor manufacturer the application and drawings as early as possible.
There is a big difference between asking:
“Can you quote a 7.5 kW three phase motor?”
and asking:
“We need a 7.5 kW, 400V, 50Hz, 4-pole three phase motor for a centrifugal pump, B3 mounting. Here is the drawing.”
The second enquiry gives both sides a much better starting point for selecting the correct motor.
