Choosing the right AC motor for your factory or project is a crucial decision. As an industrial buyer, you need reliable, efficient motors that meet the specific application requirements. We are a factory specializing in the production of AC motors, with over 30 years of production experience, helping you make an informed choice based on facts.
AC motors convert alternating current into mechanical energy. They operate based on a key principle: when the stator (the stationary part) is energized to generate a rotating magnetic field, it drives the rotor to rotate. This design is simple, sturdy, and durable, making it the power core for most industrial applications. If your factory needs to be equipped with pumps, fans, air compressors, etc., pairing with AC motors is a good choice.
The asynchronous motor, also known as the induction motor, is the absolute mainstay in the industrial field. Its rotor speed is slightly lower than the synchronous speed of the rotating magnetic field generated by the power supply, hence it is named "asynchronous". This type of motor has high cost-effectiveness, wide practicality, and extremely low maintenance requirements, and is widely used in various mechanical processing operations.
Single-phase induction motors use standard single-phase AC power (such as 220V), and are suitable for applications with relatively low power requirements. Their starting torque is usually moderate, making them an ideal choice for many light industrial equipment and commercial applications.

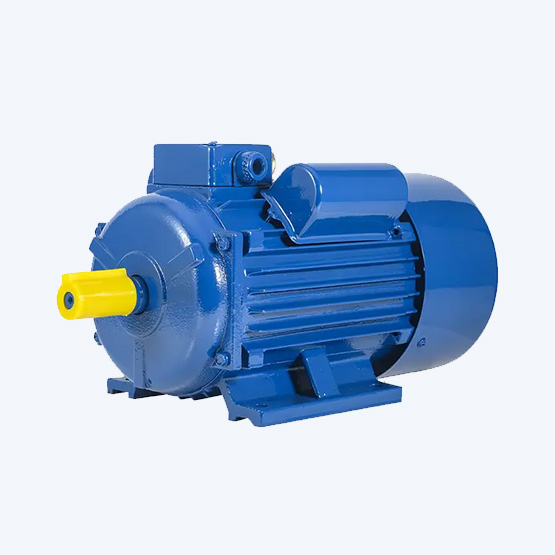

Our factory has single-phase motors of different models such as YL, YC, and YY, which are compatible with various capacitor combinations for starting.
For instance, in a small processing workshop, the motor that drives a bench drill or an exhaust fan is likely to be a capacitor-start single-phase motor. It can perform its task reliably, but if you need to drive a large crusher that processes several tons of materials per hour, then its power and continuous working capacity may not be sufficient.
For the vast majority of industrial power applications, the three-phase induction motor is the default and most cost-effective choice. It directly connects to three-phase alternating current, has high efficiency, smooth operation, excellent torque characteristics, and very low maintenance requirements.
This is the most robust and widely used type among all motors. Its rotor structure resembles a "squirrel cage", consisting of conductors embedded in the core and end rings, without any slip rings or brushes. This means it requires almost no maintenance and can withstand harsh industrial environments.
Typical applications: water pumps, centrifugal fans, conveyor belts, compressors, machine tools (such as lathes, milling machines), mixers, material conveying systems.
Advantages: Extremely simple structure, highly durable and sturdy, low cost, extremely high reliability, almost no maintenance required.
The rotor winding of this motor is connected to the external circuit through a slip ring and an electric brush. Users can adjust its starting and operating characteristics by connecting an external resistor.
Typical application: Cranes, winches, large elevators, ball mills - any heavy-load starting application that requires extremely high starting torque and limited range of speed control.
Advantages: It can provide extremely high starting torque by connecting an external resistor, while keeping the starting current at a very low level, resulting in minimal impact on the power grid.
Purchase Tips: The slip rings and brushes are wear-prone components that require regular maintenance. Therefore, they are not suitable for use in dusty or explosive environments, unless a special protective design is adopted.
When selecting a motor, please make sure to consider the following key parameters:
Power Supply: Please confirm whether your factory uses single-phase electricity or three-phase electricity.
Power and Speed: The motor specifications are determined based on the mechanical power required by the equipment (in kilowatts or horsepower) and the operating speed (RPM). Common speeds include 2POLE, 4POLE, and 6POLE. The power ranges from 0.18KW to 630KW.
Working cycle: Is the motor operating continuously (S1 duty cycle) or does it frequently start and stop (S3-S5 duty cycle)? Different duty cycles affect the thermal design and selection of the motor.
Environmental conditions: Is the motor operating in a dusty, humid, hot environment or in an area with corrosive gases? This determines the required protection level (such as IP55, IP65) and insulation level.
Overall, for the majority of industrial power transmission requirements, three-phase squirrel-cage induction motors are the preferred choice due to their unparalleled reliability and economy. For specific applications with heavy starting loads, wound-rotor induction motors offer excellent solutions. For small equipment or situations where only single-phase power is available, single-phase induction motor series can meet diverse needs. Understanding these basic types and their applicable scenarios is the first step in making the best purchasing decision for you.
